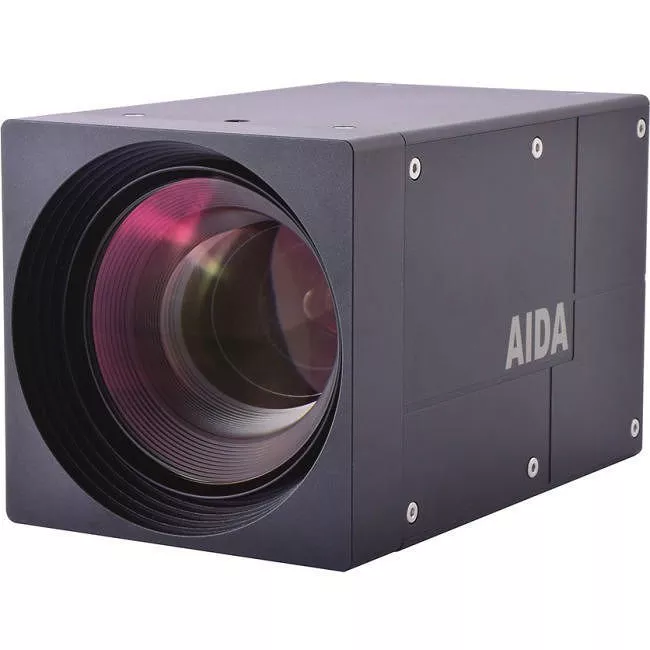

AIDA UHD6G-X12L 4K/UHD 6G-SDI POV Camera
MPN # UHD6G-X12L
UPC # 710928970582
Availability: In Stock
Condition: New
Product highlights:
  • Maximum Video Resolution: 3840 x 2160
  • Product Type: Surveillance Camera
  • Condition: New
  • Category: Video and Digital Cameras
$1,230.00
B2B Pricing options available. Get Better Pricing.
Need Help?   let's talk about it.

4K EFP Zoom Camera - Professional 12X Zoom EFP Camera

UHD6G-X12L is a professional 4K EFP camera solution that houses a superior 12X 4K lens zoom module. The UHD6G-X12L features a 1/1.7 Progressive Scan CMOS image sensor capable of 4K (4092 x 2160) with significantly enhanced imaging characteristics including sensitivity and low noise under low light conditions. Powered by a back-illuminated pixel technology, the UHD6G-X12L realizes 4K high picture quality in the visible light with wide dynamic range. The UHD6G-X12L is robust in its physical features with expanded control sets via VISCA protocol, audio and dual video (6G-SDI & HDMI 1.4) simultaneous output interfaces. Designed for versatility, durability, and cost effectiveness for a smooth integration into any broadcast, professional or corporate AV environment.

MAIN FEATURES

  • 4K 1/1.7 Progressive Scan CMOS sensor capable of 4K (4092 x 2160) captures sharp and vivid images even under very low light conditions.
  • Power by a back-illuminated pixel technology.
  • Superior 4K 12X optical zoom.
  • Advanced digital imaging processor provides vivid and detailed images by utilizing Dynamic
    Range, Auto White Balance, and Noise Reduction.
  • Superb motion-compensated temporal noise reduction filter for motion video without blurring.
  • OSD control breakout cable with audio input and RS-485 for remote communication.
  • Dual video simultaneous output interfaces 6G-SDI & HDMI.
  • Flawlessly relays multi-channel embedded audio via 6G-SDI & HDMI.
  • Perfectly suited for broadcast, pro audio/video, and security.
  • Conforming with SMPTE 292M, 424M and 2081-10.
  • Versatile, compact, and rugged design.

General Information
Manufacturer
AIDA Imaging
Manufacturer Part Number
UHD6G-X12L
Manufacturer Website Address
http://www.aidaimaging.com
Brand Name
AIDA
Product Name
UHD6G-X12L 4K/UHD 6G-SDI EFP Camera
Product Type
Surveillance Camera
Technical Information
HD Recording
Yes
Display & Graphics
Image Sensor Type
CMOS
Color Supported
Color
Video
Maximum Video Resolution
3840 x 2160
Lens
Minimum Focal Length
4.20 mm
Maximum Focal Length
50.04 mm
Optical Zoom
12x
Network & Communication
Connectivity Technology
Cable
Interfaces/Ports
HDMI
Yes
Physical Characteristics
Height
4"
Width
4"
Depth
6.3"
Weight (Approximate)
1.32 lb
Warranty
Limited Warranty
1 Year
