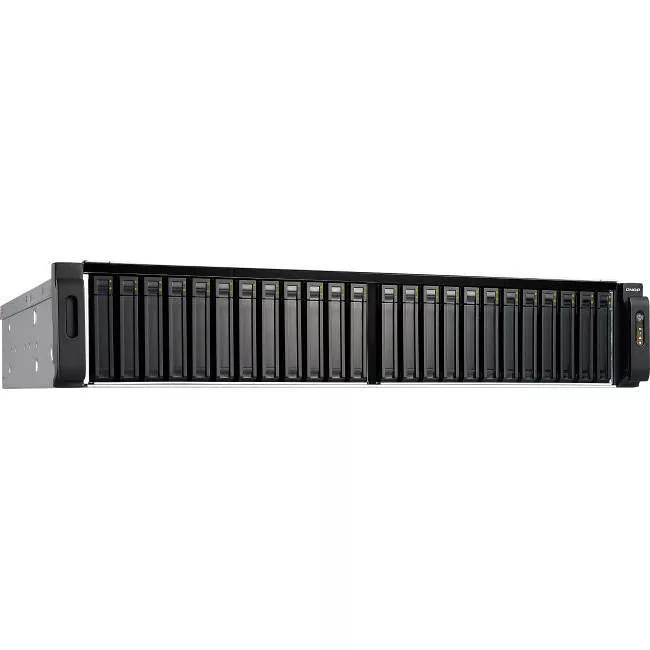

Powered by an Intel® Xeon® D processor, the powerful enterprise-class TES-3085U is open for two operating systems - either the FreeBSD-based QES or Linux-based QTS. While QES supports ZFS for the utmost reliability and allows near-limitless snapshots, block-level data deduplication and real-time data compression, QTS features Qtier Technology, SSD cache, and an abundance of value-added apps to realize storage efficiency and diverse usage applications. The TES-3085U gives the flexibility to choose from two operating systems, enabling businesses to deploy proper operating systems on multiple TES-3085U based on their needs and goals in different stages. The TES-3085U is especially useful for providing a speedy all-flash storage solution that offers up to 24 disk bays and 6 dedicated SSDs bays for caching.

Intel® Xeon® D processor optimizes performance and efficiency

Powered by an advanced 14nm Intel® Xeon® D 64-bit SoC processor with an integrated PCH, up to 128GB DDR4 ECC RDIMM RAM / 64GB DDR4 non-ECC UDIMM RAM, and with two built-in 10GbE SFP+ ports, the 12Gb/s SAS-enabled TES-3085U delivers outstanding performance for data transmission and applications. With a thermal design power of only 20-65W, the TES-3085U fulfills demands for both performance and energy saving.

Excellent hardware: immensely, durable & compact

The TES-3085U supports SAS 12Gb/s 2.5 drives, allowing for SAS 12Gb/s and SATA 6Gb/s hard drives and SSDs. Businesses can create the most cost-effective storage by implementing suitable drives based on their needs.

1. Intel Xeon D multi-core processor

14nm energy-efficient SoC, supports DDR4 RAM and PCIe Gen.3 per-lane throughput.

2. DDR4 2133 MHz memory

Supports four DDR4 RAM modules for UDIMM and ECC RDIMM (up to 64GB UDIMM RAM, up to 128GB RDIMM RAM).

3. 12Gb/s SAS controllers

Supports 12Gb/s SAS hard drives and SSDs for fast data transfer and highly-reliable storage.

4. Hot swappable fans

Four hot-swappable 6cm cooling fans that can be quickly and easily replaced.

5. 2 x Built-in 10GbE SFP+ ports

Boosts iSCSI/NFS/CIFS network transfer for virtualization applications, data backup/restoration and massive data transmission.

6. 4 x Gigabit ports

Ideal for service binding, port trunking, and MPIO configurations.

7. 4 x PCIe slots

Three high-speed PCIe Gen.3 and one PCIe Gen.2; supports 10GbE/ 40GbE adapters and PCIe NVMe SSD.

8. 6 x 2.5 SATA SSD slots

Used for caching, high-performance storage pools, or the QES OS drive.

5-year warranty: Global warranty inclusive

The TES-3085U is backed by a 5-year warranty with 3-year global warranty inclusive at no extra cost. This premier warranty demonstrates QNAP's dedication to the essential business needs of continuous operations and non-interrupted services to their users.

Dual OS options system inside a single rackmount NAS

The TES-3085U provides flexibility for choosing between uncompromising reliability and greater versatility. The QES operating system is suited for enterprise-level storage with maximized business continuity, or the QTS operating system for enjoying application storage for greater functionality.
