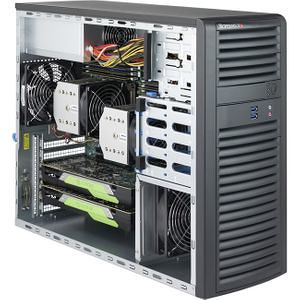

Supermicro SYS-7039A-I Mid-Tower Workstation
MPN # SYS-7039A-I
Condition: New
Product highlights:
  • Processor Supported: 2x Intel Xeon Scalable family
  • Drive Bays: 4x 3.5" Internal, 2x 5.25" External
  • Supports up to 2x Double-Wide cards
  • Form Factor: Tower
Contact sales for pricing
Need Help?   let's talk about it.

The Supermicro SYS-7039A-i is based on the Intel Xeon Scalable family. It offers four 3.5" internal drive bays and support for up to two double-wide PCI-E cards

Processor & Chipset
Number of Processors Supported
2
Processor Type
Xeon
Processor Socket
LGA 3647
Processor Supported
  • Bronze 31XX
  • Bronze 32XX
  • Silver 41XX
  • Silver 42XX
  • Gold 51XX
  • Gold 52XX
  • Gold 61XX
  • Gold 62XX
  • Platinum 81XX
  • Platinum 82XX
Thermal Design Power (TDP)
205W
Chipset Manufacturer
Intel
Chipset Model
C621
Memory
Maximum Memory
4 TB
Memory Technology
  • DDR4 SDRAM
  • DDR4 NVDIMM (Intel Optane DCPMM)
Memory Standard
DDR4-2933/PC4-23400
Number of Total Memory Slots
16
Controllers
SATA3
  • Via C621 chipset
  • RAID 0, 1, 5, 10
Network & Communication
Ethernet Technology
  • 1000GBASE-T
I/O Expansions
PCI Express
  • 4x PCI-E 3.0 x16 slots
  • 2x PCI-E 3.0 x8 slots
  • 1x PCI-E 3.0 x4 M.2 slots (2260/2280/22110)
Drive Bays
Internal
  • 4x 3.5" drive bays
External
  • 2x 5.25" bays
Interfaces/Ports
Number of USB 3.0 Ports
6 (2x front, 4x rear)
Number of USB 3.1 Ports
2 (rear)
Number of SATA Interfaces
10
Number of M.2 Interfaces
1
LAN
  • 2x RJ45 1000BASE-T Ethernet LAN Ports
Audio
  • 7.1 HD Audio with optical S/PDIF
Serial Port / Header
  • 1 COM port (header)
DOM
  • 1 Disk on Module port
TPM
  • 1 TPM 2.0 header
Power Description
Number of Power Supplies
1
Redundant Power Supplies
No
Maximum Power Supply Wattage
1200 W
Certification
80 Plus Platinum
Physical Characteristics
Color
Black
Form Factor
Tower
Height
16.7"
Width
7.6"
Depth
20.68"
