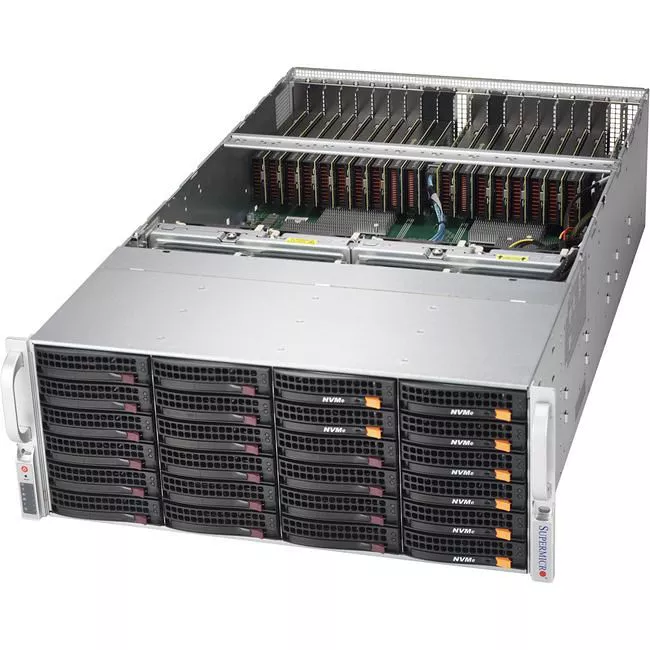

Supermicro SYS-6049GP-TRT 4U Server
MPN # SYS-6049GP-TRT
Condition: New
Product highlights:
  • Processor Supported: 2x Intel Xeon Scalable Family
  • Drive Bays: 24x 3.5" Hot-Swap
  • Supports up to 20x NVIDIA Tesla T4 GPUs
  • Rack Height: 4U
Contact sales for pricing
Need Help?   let's talk about it.

The Supermicro SYS-6049GP-TRT is based on the Intel Xeon Scalable family. It offers twenty-four SATA/SAS 3.5" hot-swappable drive bays, an LSI 3108 based SAS controller, and support for twenty single width GPUs.

Processor & Chipset
Number of Processors Supported
2
Processor Socket
LGA 3647
Processor Type
Xeon
Processor Supported
  • Bronze 31XX
  • Bronze 32XX
  • Silver 41XX
  • Silver 42XX
  • Gold 51XX
  • Gold 52XX
  • Gold 61XX
  • Gold 62XX
  • Platinum 81XX
  • Platinum 82XX
Number of UPI links
3
Thermal Design Power (TDP)
205
Chipset Manufacturer
Intel
Chipset Model
C622
Memory
Maximum Memory
6 TB
Memory Technology
  • DDR4 SDRAM
  • DDR4 NVDIMM (Intel Optane DCPMM)
Memory Standard
DDR4-2933/PC4-23400
Number of Total Memory Slots
24
Controllers
SATA3
  • Via C622 chipset
  • RAID 0, 1, 5, 10
SAS3
  • Via LSI 3108 based controller
  • RAID 0, 1, 5, 6, 10, 50, 60
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST 2500 BMC
Network & Communication
Ethernet Technology
  • 10GBASE-T
I/O Expansions
PCI Express
  • 20x PCI-E 3.0 x16 slots
  • 1x PCI-E 3.0 x8 (in x16 slot)
Drive Bays
Hot-swap
  • 24x 3.5" SATA/SAS Hot-swap drive bays
Interfaces/Ports
Total Number of USB Ports
4 (rear)
Number of SATA Interfaces
10
Number of SAS Interfaces
4
LAN
  • 2x RJ45 10GBASE-T Ethernet LAN Ports
  • 1x RJ45 Dedicated IPMI Port
Onboard Video
1x VGA Connector
Power Description
Number of Power Supplies
4
Redundant Power Supplies
Yes (2+2)
Maximum Power Supply Wattage
2000 W
Certification
80 Plus Titanium
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
4U
Height
7.0"
Width
17.2"
Depth
32.1"
