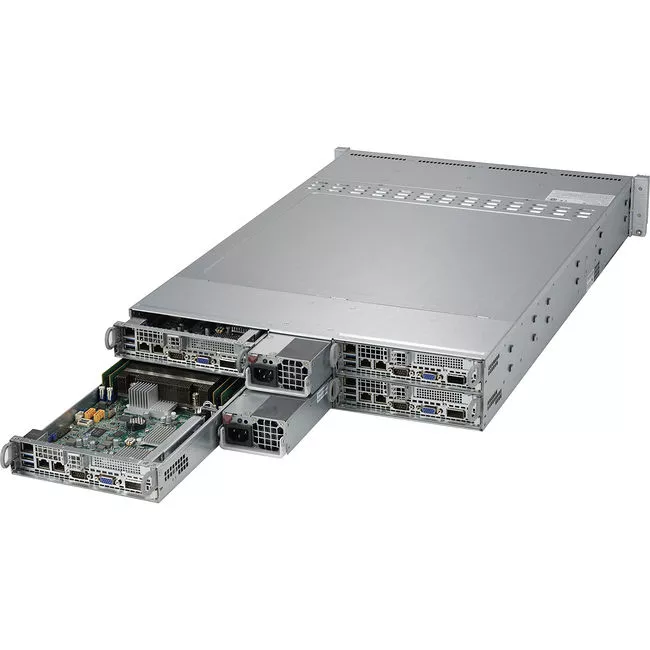

The Supermicro SYS-6028TR-HTFR is based on the Intel Xeon E5-2600 v3/v4 families. It offers four nodes, each supporting three hot-swappable 3.5" drive bays.

Specifications

Processor & Chipset (per node)

Number of Processors Supported

Processor Socket

LGA 2011-3

Processor Type

Xeon

Processor Supported

E5-2600 v3
E5-2600 v4

Thermal Design Power (TDP)

Up to 145W

Chipset Manufacturer

Intel

Chipset Model

C612

Memory (per node)

Maximum Memory

512 GB

Memory Technology

DDR4 SDRAM

Memory Standard

DDR4-2400/PC4-19200

Number of Total Memory Slots

Controllers

SATA3

Via C612 chipset
RAID 0, 1, 5

Display & Graphics

Graphics Controller Manufacturer

ASPEED

Graphics Controller Model

AST2400

Network & Communication

Ethernet Technology

1000BASE-T

Infiniband

Mellanox ConnectX-3 FDR Infiniband 56Gbps Controller

I/O Expansions (per node)

PCI Express

1x PCI-E 3.0 x16 (low-profile) slot
1x PCI-E 3.0 x8 (add-on card) slot

Drive Bays (per node)

Hot-swap

3x 3.5" Hot-swap drive bays

Interfaces/Ports (per node)

Total Number of USB Ports

Number of USB 3.0 Ports

2 (rear)

Infiniband

1x External QSFP Infiniband connector

Number of SATA Interfaces

LAN

2x RJ45 1000BASE-T Ethernet LAN Ports
1x RJ45 IPMI LAN Port

Onboard Video

1x VGA Connector

Serial Port/Header

1x RS232

Power Description

Number of Power Supplies

Redundant Power Supplies

Yes

Maximum Power Supply Wattage

1600 W

Certification

80 Plus Titanium

Physical Characteristics

Color

Black

Form Factor

Rack-mountable

Rack Height

Height

3.47"

Width

17.25"

Depth

28.50"
