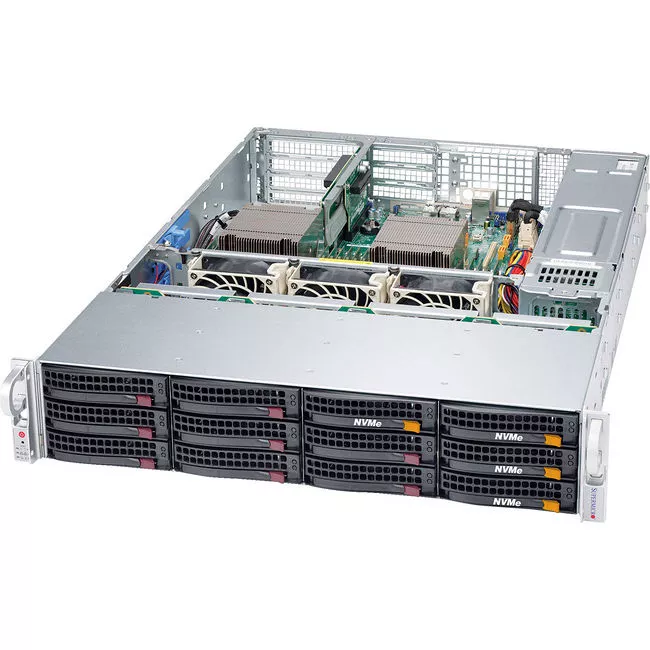

The Supermicro SYS-6028R-TDWNR is based on the Intel Xeon E5-2600 v3/v4 families. It supports eight hot-swappable 3.5" and four 2.5" NVMe drive bays.

Specifications

Processor & Chipset

Number of Processors Supported

Processor Socket

LGA 2011-3

Processor Type

Xeon

Processor Supported

E5-2600 v3
E5-2600 v4

Thermal Design Power (TDP)

Up to 145W

Chipset Manufacturer

Intel

Chipset Model

C612

Memory

Maximum Memory

1 TB

Memory Technology

DDR4 SDRAM

Memory Standard

DDR4-2400/PC4-19200

Number of Total Memory Slots

Controllers

SATA3

Via C612 chipset
RAID 0, 1, 5, 10

NVMe

Via C612 chipset

Display & Graphics

Graphics Controller Manufacturer

ASPEED

Graphics Controller Model

AST2400

Network & Communication

Ethernet Technology

1000BASE-T

I/O Expansions

PCI Express

1x PCI-E 3.0 x16 (Full-Height, Half-Length) slot
2x PCI-E 3.0 x8 (Full-Height, Half-Length) slots
1x PCI-E 3.0 x8 (Low-Profile) slot

Drive Bays

Hot-swap

8x 3.5" Hot-swap drive bays
4x 2.5" NVMe drive bays

Interfaces/Ports

Total Number of USB Ports

Number of USB 3.0 Ports

3 (2x rear, 1x Type A)

Number of USB 2.0 Ports

4 (2x rear, 2x header)

Number of SATA Interfaces

Number of NVMe Interfaces

LAN

2x RJ45 1000BASE-T Ethernet LAN Ports
1x RJ45 IPMI LAN Port

Onboard Video

1x VGA Connector

Serial Port/Header

1x COM port (header)

DOM

2x DOM ports

Power Description

Number of Power Supplies

Redundant Power Supplies

Yes

Maximum Power Supply Wattage

920 W

Certification

80 Plus Platinum

Physical Characteristics

Color

Black

Form Factor

Rack-mountable

Rack Height

Height

3.5"

Width

17.2"

Depth

25.5"
