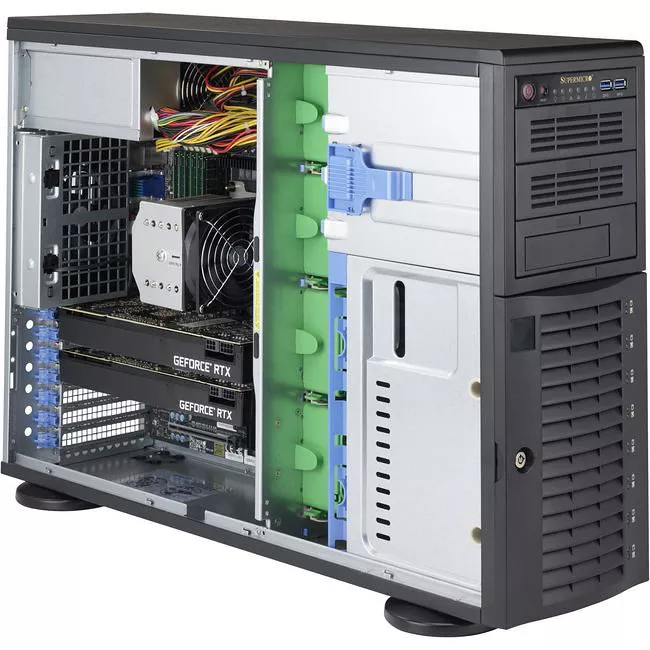

Supermicro SYS-5049A-T 4U Rack-mountable Workstation
MPN # SYS-5049A-T
Condition: New
Product highlights:
  • Processor: 1x Intel Xeon Scalable family processor
  • Drive Bays: 8x 3.5" Hot-Swap
  • Supports up to 3x Double-Wide cards
  • Form Factor: 4U Rackmountable / Tower
Contact sales for pricing
Need Help?   let's talk about it.

The Supermicro SYS-5049A-T is based on the Intel Xeon Scalable family. It offers eight 3.5" hot-swappable drive bays, and support for up to three double-wide PCI-E cards.

Processor & Chipset
Number of Processors Supported
1
Processor Socket
LGA 3647
Processor Type
Xeon
Processor Supported
  • Bronze 31XX
  • Bronze 32XX
  • Silver 41XX
  • Silver 42XX
  • Gold 51XX
  • Gold 52XX
  • Gold 61XX
  • Gold 62XX
  • Platinum 81XX
  • Platinum 82XX
Chipset Manufacturer
Intel
Chipset Model
C621
Memory
Maximum Memory
3 TB
Memory Technology
  • DDR4 SDRAM
  • DDR4 NVDIMM (Intel Optane DCPMM)
Memory Standard
DDR4-2933/PC4-23400
Number of Total Memory Slots
12
Controllers
SATA3
  • Via C621 chipset
  • RAID 0, 1, 5, 10
Audio
7.1 High Definition Audio with S/PDIF header
Network & Communication
Ethernet Technology
  • 10GBASE-T
I/O Expansions
PCI Express
  • 4x PCI-E 3.0 x16 slots (3x double-wide cards)
  • 2x PCI-E 3.0 x8 (in x16 slots)
M.2
  • 1x PCI-E 3.0 x4
  • M-Key 2260/2280/22110
Drive Bays
Hot-swap
  • 8x 3.5" Hot-swap drive bays
  • 3x 5.25" Peripheral drive bays
Interfaces/Ports
Total Number of USB Ports
12
Number of USB 3.1 Ports
  • 6x USB 3.1 Gen1 ports (4x rear, 1x rear Type C)
  • 4x USB 3.1 Gen2 ports (1x rear Type A, 1x rear Type C)
Number of USB 2.0 Ports
2x USB 2.0 ports (2x header Type A)
Number of SATA Interfaces
  • 8x SATA3 ports
LAN
  • 1x RJ45 1000BASE-T Ethernet LAN Port
  • 1x RJ45 10GBASE-T Ethernet LAN Port
Serial Port / Header
1x COM port
Power Description
Number of Power Supplies
1
Redundant Power Supplies
No
Maximum Power Supply Wattage
1200 W
Certification
80 Plus Platinum
Physical Characteristics
Color
Black
Form Factor
Rack-mountable / Tower
Rack Height
4U
Height
17.8"
Width
7.0"
Depth
25.5"
