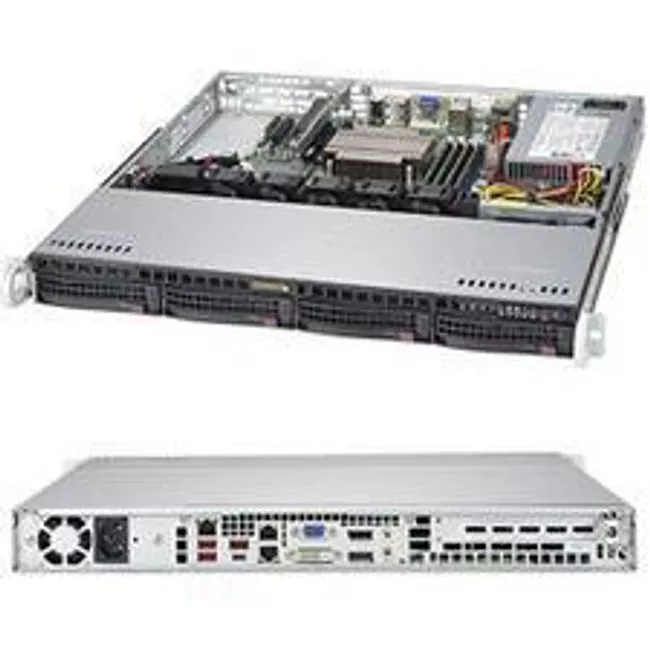

Supermicro SYS-5019C-MHN2 Barebone System - 1U Rack-Mount - Intel C246 Chipset - Socket H4 LGA-1151

MPN: SYS-5019C-MHN2
Highlights
  • Number of Processors Supported: 1
  • Processor Socket: Socket H4 LGA-1151
  • Maximum Memory: 128 GB
  • Memory Standard: DDR4-2666/PC4-21300
Contact sales for pricing
Please log in to add an item to your wishlist.
Need Help? Let's talk about it.
Please log in to add an item to your wishlist.
MPN: SYS-5019C-MHN2
Contact sales for pricing

Supermicro SYS-5019C-MHN2 Barebone System - 1U Rack-Mount - Intel C246 Chipset - Socket H4 LGA-1151

Highlights
  • Number of Processors Supported: 1
  • Processor Socket: Socket H4 LGA-1151
  • Maximum Memory: 128 GB
  • Memory Standard: DDR4-2666/PC4-21300
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-5019C-MHN2
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
5019C-MHN2
Product Name
SuperServer 5019C-MHN2
Product Type
Barebone System
Processor & Chipset
Number of Processors Supported
1
Processor Socket
Socket H4 LGA-1151
Processor Supported
  • Xeon
  • Core i9
  • Core i7
  • Core i5
  • Core i3
  • Celeron
  • Pentium
  • 64-bit Processing
    Yes
    Chipset Manufacturer
    Intel
    Chipset Model
    C246
    Memory
    Maximum Memory
    128 GB
    Memory Technology
    DDR4 SDRAM
    Memory Standard
    DDR4-2666/PC4-21300
    Number of Total Memory Slots
    4
    Controllers
    Controller Type
    Serial ATA/600
    RAID Supported
    Yes
    Display & Graphics
    Graphics Controller Manufacturer
    ASPEED
    Graphics Controller Model
    AST2500
    Network & Communication
    Ethernet Technology
    Gigabit Ethernet
    I/O Expansions
    Number of Total Expansion Bays
    4
    Number of 3.5" Bays
    4
    Number of Total Expansion Slots
    1
    Number of PCI Express x16 Slots
    1
    Interfaces/Ports
    Total Number of USB Ports
    4
    Number of SATA Interfaces
    5
    Power Description
    Input Voltage
  • 120 V AC
  • 230 V AC
  • Number of Power Supplies Installed
    1
    Maximum Power Supply Wattage
    350 W
    Physical Characteristics
    Color
    Black
    Form Factor
    Rack-mountable
    Rack Height
    1U
    Height
    1.7"
    Width
    17.2"
    Depth
    19.8"
    Weight (Approximate)
    17.99 lb
    Miscellaneous
    Package Contents
    • SuperServer 5019C-MHN2
    • 1 x Super X11SCZ-F Motherboard
    • 1 x 1U Chassis
    • 1 x 1U 4-Port 12Gbps Backplane Support 4x3.5
    • 1 x SATA,INT,ROUND,ST-RA,55CM,30AWG
    • 1 x CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,27CM,28AWG
    • 2 x SATA,INT,ROUND,ST-RA,31CM,30AWG
    • 1 x SATA,INT,ROUND,ST-RA,45CM,30AWG
    • 1 x 4 pin to 4 pin Fan Extension Cord, for PWM fan. 23cm. 24AWG
    • 1 x 1U I/O Shield for X11SCZ with EMI Gasket
    • 1 x SC811/SC512L/SC512F/SC813M/SC113M/SC513L-410B/SC513L-420B/SC513F, UP X9SRE/I, X9 Mylar Air Shroud, 12"x9.6" MB
    • 1 x RSC-RR1U-E16 with PIC-E x16 Output
    • 1 x 1U Passive Enhanced Performance CPU Heat Sink for Intel Socket H Series Processors
    • 1 x 1U Single AC-DC 350W Platinum Level, Multiple Output Power Supply (180mm)
    • 1 x CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,75CM,28AWG
    • 1 x PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,13A,125V,RoHS/REACH
    • 1 x Black DVD Dummy Cover for SC813, 813M, 815, PBF-RoHS
    • 4 x 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH
    • 1 x Front Control Board Dual Color for SC815,SC813M (C)
    • 4 x Black Gen 5.5 Hot-swap 3.5"; HDD Tray
    • 1 x 1U I/O Shield for X10 and X9 Server MB with 5X5mm Vent Hole and EMI Gasket,RoHS/REACH,PBF
    • 1 x Outer Rail, Quick-release type, 25.6"" to 33.05""
    • 1 x Inner Rail, front, short, Quick-release type
    • 1 x Inner Rail, Extension (quick) for 1U 17.2
    • 1 x Fan tray for Six 40x28 fans(SC813M/113M)
    • 2 x Dummy Fan 40x28mm
    Environmentally Friendly
    Yes
    Environmental Certification
    RoHS
    Warranty
    Limited Warranty
    3 Year
