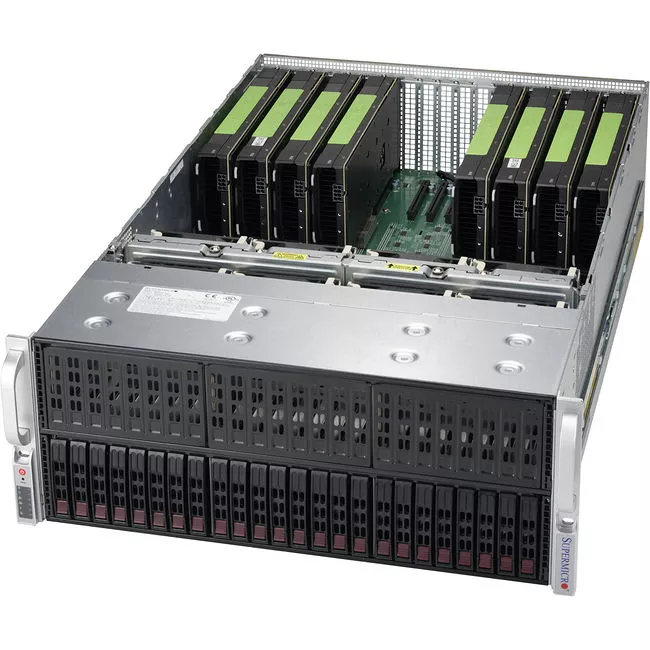

Supermicro SYS-4028GR-TR2 4U Server
MPN # SYS-4028GR-TR2
Condition: New
Product highlights:
- Processor: 2x Intel E5-2600 v3/v4
- Drive Bays: 24x 2.5" Hot-Swap
- Supports up to 10x Double-Wide cards in a Single Root Complex
- Rack Height: 4U
Need Help? let's talk about it.
The Supermicro SYS-4028GR-TR2 is based on the Intel Xeon E5-2600 v3/v4 families. It offers twenty-four 2.5" hot-swappable drive bays with support for up to ten double-wide PCI-E cards in a single root complex.
Processor & Chipset
Number of Processors Supported
2
Processor Socket
LGA 2011-3
Processor Type
Xeon
Processor Supported
- E5-2600 v3
- E5-2600 v4
Thermal Design Power (TDP)
Up to 160W
Chipset Manufacturer
Intel
Chipset Model
C612
Memory
Maximum Memory
1.5 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2400/PC4-19200
Number of Total Memory Slots
24
Controllers
SATA3
- Via C612 chipset
- RAID 0, 1, 5, 10
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2400
Network & Communication
Ethernet Technology
- 1000BASE-T
I/O Expansions
PCI Express
- 11x PCI-E 3.0 x16 slots (Supports 10x Double-width cards)
- 1x PCI-E 3.0 x8 (in x16 slot)
- Single Root Complex
Drive Bays
Hot-swap
24x 2.5 hot-swap drive bays
Interfaces/Ports
Total Number of USB Ports
4
Number of USB 3.0 Ports
4
Number of SATA Interfaces
10
LAN
- 2x RJ45 1000BASE-T Ethernet LAN Ports
- 1x RJ45 Dedicated IPMI Port
Onboard Video
1x VGA Connector
Serial Port / Header
1x Serial Header
Power Description
Number of Power Supplies
4
Redundant Power Supplies
Yes
Maximum Power Supply Wattage
2000 W
Certification
80 Plus Titanium
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
4U
Height
7.0"
Width
17.2"
Depth
29"
