Supermicro SYS-2028TP-DNCR 2U Server

Highlights

Overview

Specifications

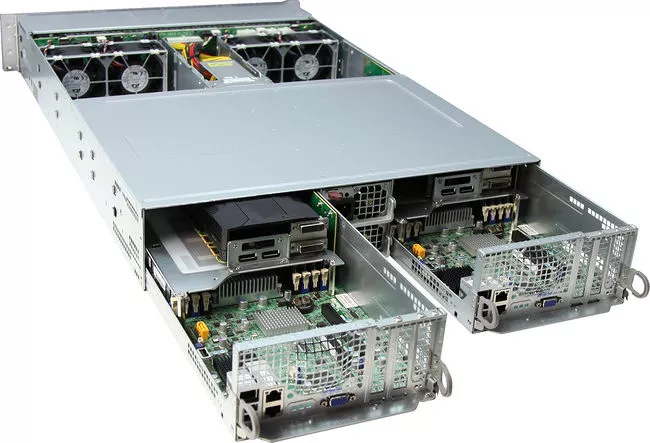

The Supermicro SYS-2028TP-DNCR is based on the Intel Xeon E5-2600 v3/v4 families. It features two nodes, each with support for eight hot-swappable 2.5" (four NVMe) drive bays.

Specifications

Processor & Chipset (per node)

Number of Processors Supported

Processor Socket

LGA 2011-3

Processor Type

Xeon

Processor Supported

E5-2600 v3
E5-2600 v4

Thermal Design Power (TDP)

Up to 145W

Chipset Manufacturer

Intel

Chipset Model

C612

Memory (per node)

Maximum Memory

1 TB

Memory Technology

DDR4 SDRAM

Memory Standard

DDR4-2400/PC4-19200

Number of Total Memory Slots

Controllers

SAS3

Via Broadcom 3008 controller
RAID 0, 1, 10

Display & Graphics

Graphics Controller Manufacturer

ASPEED

Graphics Controller Model

AST2400

Network & Communication

Ethernet Technology

1000BASE-T

I/O Expansions (per node)

PCI Express

1x PCI-E 3.0 x16 slot
1x PCI-E 3.0 x8 slot

Drive Bays (per node)

Hot-swap

8x 2.5" SAS Hot-swap drive bays
4x 2.5" NVMe Hot-swap drive bays

Interfaces/Ports (per node)

Total Number of USB Ports

Number of USB 3.0 Ports

2 (rear)

Number of SAS Interfaces

Number of NVMe Interfaces

LAN

2x RJ45 1000BASE-T Ethernet LAN Ports
1x RJ45 IPMI LAN Port

Onboard Video

1x VGA Connector

Serial Port/Header

1x Fast UART 16550 port
1x header

Others

1x mSATA (full size) and 1x SATADOM support on daughter card
1x SATADOM on motherboard

Power Description

Number of Power Supplies

Redundant Power Supplies

Yes

Maximum Power Supply Wattage

1600 W

Certification

80 Plus Titanium

Physical Characteristics

Color

Black

Form Factor

Rack-mountable

Rack Height

Height

3.47"

Width

17.25"

Depth

28.75"
