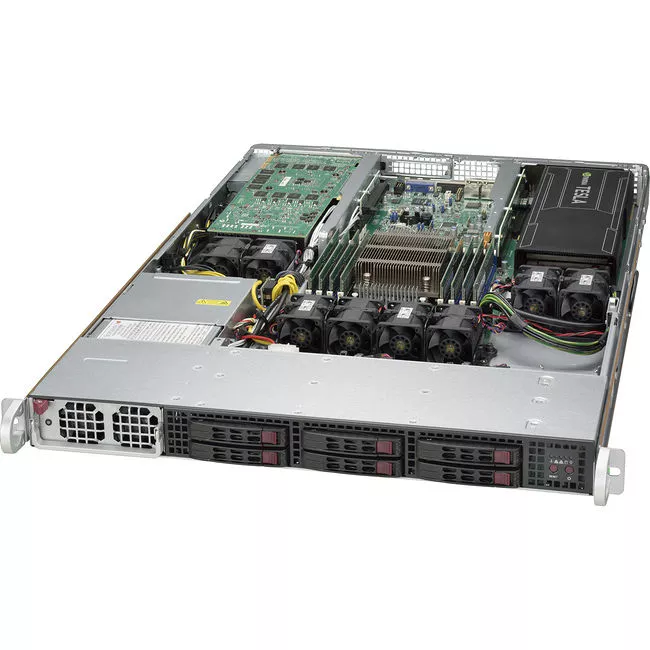

Supermicro SYS-1018GR-T 1U Server

MPN # SYS-1018GR-T
Condition: New
Product highlights:
  • Processor Supported: 1x Intel E5-1600 v3/v4, E5-2600 v3/v4
  • Drive Bays: 6x 2.5" Hot-Swap
  • Supports up to 2x Double-Wide Cards
  • Rack Height: 1U
Contact sales for pricing

Need Help?

let's talk about it.

The Supermicro SYS-1018GR-T is based on the Intel Xeon E5-1600 v3/v4 and E5-2600 v3/v4 families. It offers six hot-swappable 2.5" drive bays and support for up to two Double-Wide cards.

Processor & Chipset
Number of Processors Supported
1
Processor Socket
LGA 2011-3
Processor Type
Xeon
Processor Supported
  • E5-1600 v3
  • E5-1600 v4
  • E5-2600 v3
  • E5-2600 v4
Thermal Design Power (TDP)
Up to 145W
Chipset Manufacturer
Intel
Chipset Model
C612
Memory
Maximum Memory
512 GB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2400/PC4-19200
Number of Total Memory Slots
8
Controllers
Controller Type
SATA3
RAID Supported
Yes
RAID Levels
0, 1, 5, 10
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2400
Network & Communication
Ethernet Technology
1000BASE-T
Number of Network (RJ-45) Ports
2
I/O Expansions
PCI Express
  • 2x PCI-E 3.0 x16 slots (supports double-wide cards)
  • 1x PCI-E 3.0 x8 slot (I.B. cards)
Drive Bays
Hot-swap
6x 2.5" Hot-swap drive bays
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 3.0 Ports
2
Number of SATA Interfaces
6
LAN
  • 2x RJ45 Gigabit Ethernet LAN Ports
  • 1x RJ45 Dedicated IPMI Port
Onboard Video
1x VGA Connector
Serial Port
1x Serial Header
DOM
2x DOM (Disk on Module) power connectors
Power Description
Number of Power Supplies
1
Maximum Power Supply Wattage
1400 W
Certification
80 Plus Platinum
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
1U
Height
1.7"
Width
17.2"
Depth
28.5"
