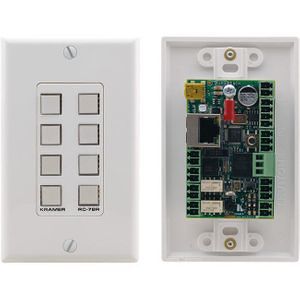

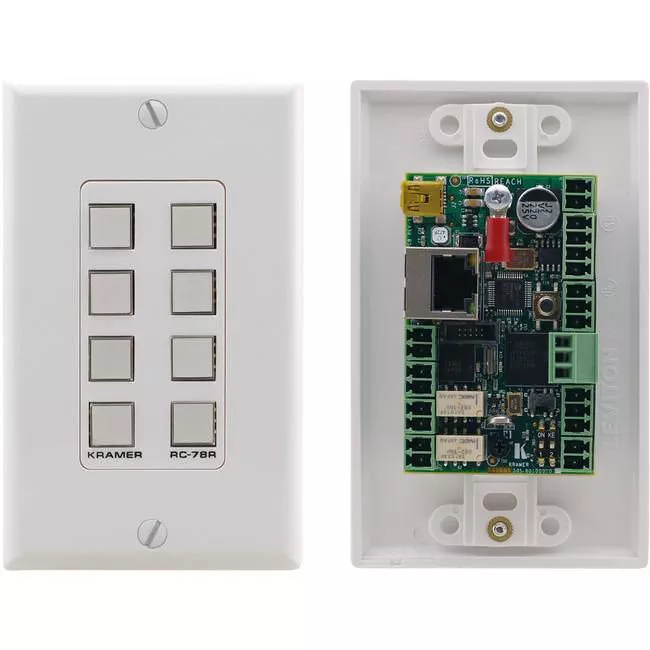

The RC-78R is an eight-button configurable room controller for multimedia rooms. It controls audio components, video components and other room facilities such as lights and screens.

• 8 Configurable Buttons - RGB backlit, front panel buttons, configured using the K-Config configuration software.

• 1 GPI/O Port - Can be configured by K-Config as a digital input, digital output or analog input for interfacing with a variety of devices such as sensors, switches, LEDs, or relays.

• 2 Bidirectional RS-232 Ports - Control AV equipment such as projectors, LCD and PDP displays, power amplifiers, switchers and scalers.

• 2 Relay Contact Closure Ports - Control other room items related to the AV system, such as, raising and lowering drapes, a screen or a projector.

• 2 IR Control Ports - With an IR learning receiver behind the front plate that learns commands from any IR remote.

• 1 RS-485 Port.

• Kramer Site-CTRL Compatibility - For network remote control and management over the Ethernet port.

• K-NET™ Control Channel - Connects compatible user interfaces, supply power and control data over a single cable.

• Flexible Control - Via Ethernet and K-NET.

• Note - Decora compatible. Suitable for installation in TBUS-1Axl.

• Size - Wall Plate - 1 gang US.
