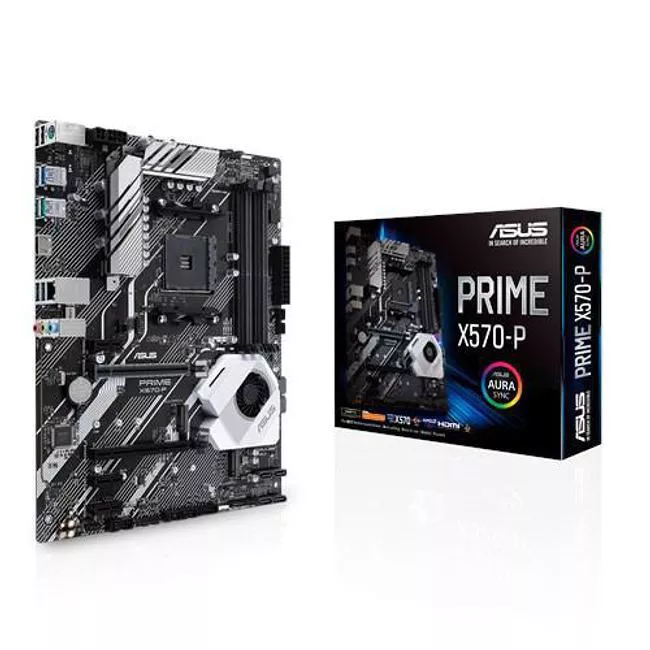

ASUS PRIME X570-P Ryzen 3 Desktop Motherboard - AMD Chipset - Socket AM4

MPN: PRIME X570-P
ASUS PRIME X570-P Ryzen 3 Desktop Motherboard - AMD Chipset - Socket AM4
Out of Stock
Highlights
  • Processor Socket: Socket AM4
  • Total Processor Supported: 1
  • Memory Technology: DDR4 SDRAM
  • Maximum Memory: 128 GB
$169.51
Please log in to add an item to your wishlist.
B2B pricing options available.

SabrePC B2B Account Services

Save instantly and shop with assurance knowing that you have a dedicated account team a phone call or email away to help answer any of your questions with a B2B account.

  • Business-Only Pricing
  • Personalized Quotes
  • Fast Delivery
  • Products and Support
Need Help? Let's talk about it.
Please log in to add an item to your wishlist.
ASUS PRIME X570-P Ryzen 3 Desktop Motherboard - AMD Chipset - Socket AM4
MPN: PRIME X570-P

$169.51

ASUS PRIME X570-P Ryzen 3 Desktop Motherboard - AMD Chipset - Socket AM4

Out of Stock
Highlights
  • Processor Socket: Socket AM4
  • Total Processor Supported: 1
  • Memory Technology: DDR4 SDRAM
  • Maximum Memory: 128 GB

Power Delivery Enhancements

Dr.MOS

Prime X570-Pro utilizes 12+2 power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that AMD's latest processors demand.

6-Layer PCB Design

Improved thermal solution
6-layer PCB can quickly dissipate heat around the VRM, improving overall system stability and giving the cPU more overclocking headroom.
Compared with 4-layer PCB, temperature of 6-layer PCB will help decrease up to 30+ OC under default operation and 50+ OC under CPU OC mode, which can increase the PCB lifespan and reliability.

Active Chipset Heatsink Solution

Dedicated cooling for unthrottled transfers

PCIe 4.0 provides twice the bandwidth for data flowing through the chipset, which creates more heat than the previous generation. The Prime X570-Pro features an actively cooled heatsink to prevent throttling during sustained transfers.

Active Chipset Heatsink Solution includes:

  • Air Duct: A specially-designed air duct helps the fan generate static pressure and concentrates air flow over the fins.
  • Finned heatsink: The heatsink fin density is optimized to maximize surface area while maintaining a low-resistance exhaust path.
  • Custom Delta Superflo Fan: The custom low-noise fan features a high-durability bearing with a 60,000-hour L10 lifespan.

PCIe 4.0 Ready on X570

Prime X570 Series equipped with PCIe 4.0 slots, PCIe 4.0 M.2 slots, 6-layer PCB deliver the best signal quality to enjoy the fastest data-transfer speeds on the 3rd Generation AMD Ryzen platform.

Addressable Gen 2 RGB header

Prime X570-P's Addressable Gen 2 RGB header is now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.
