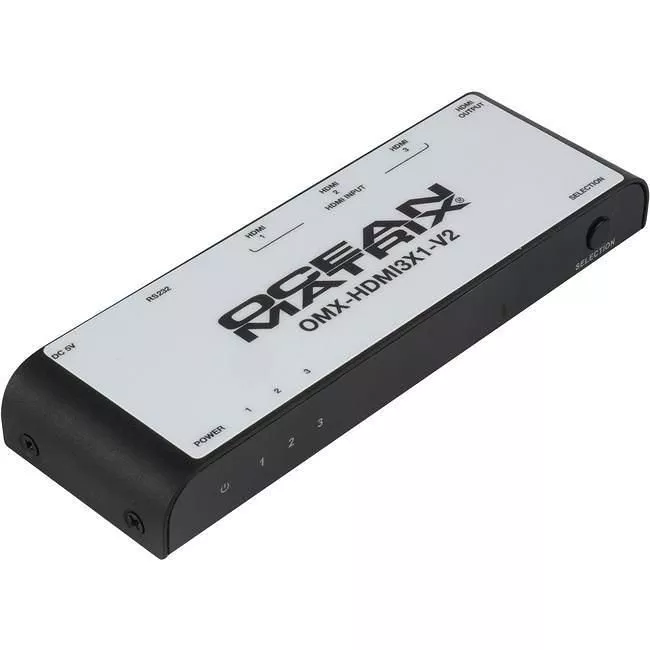

Ocean Matrix OMX-HDMI3X1-V2 4K/UHD 3x1 HDMI 2.0 Switcher with Remote Control

The simple solution for switching between three different 4K UHD HDMI sources is the Ocean Matrix OMX-HDMI3X1-V2. Front panel, handheld remote or RS232 control or allow you to select between three sources and route 4K signal to a single display, projection system, digital signage system or HDMI extender. The unit supports resolutions up to 4Kx2K (4096 x 2160) from cameras, digital signage players, gaming consoles, set top boxes, Blu-Ray players and more.

HDMI source selection can be controlled by the included remote or by the RS232 serial port on the switcher. The OMX-HDMI-3X1-V2 accommodates bandwidth up to 18Gbps, has a baud rate of 9600bps and handles standard audio, Direct Stream Digital and HD(HBR). It also supports HDMI 2.0 standards as well as HDCP 2.2.

Features:

• Supports HDMI resolution up to 4K x 2K@60HZ and HDMI 3D
• Input signal can be switched by remote control
• Supports bandwidth up to 18Gpbs
• RS232 serial port, baud rate 9600bps
• Audio: standard, Direct Stream Digital, and HD(HBR)
