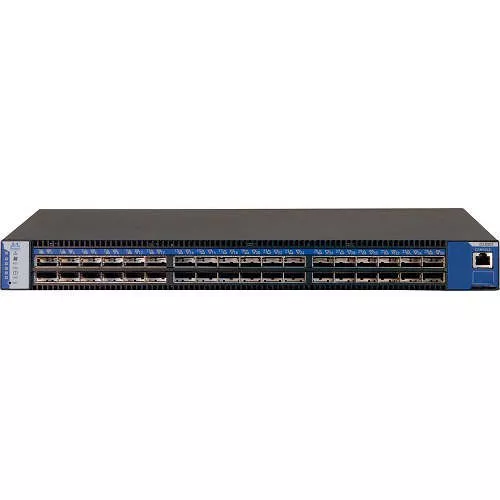

Mellanox MSX6025F-1SFS SWITCHX-2 BASED FDR INFINIBAND 1U SWITCH, 36 QSFP+ PORTS, 1 POWER SUPPLY (AC), U
MPN # MSX6025F-1SFS
UPC # 044111665345
Condition: New
Product highlights:
  • Product Type: InfiniBand Switch
  • Compatible Rack Unit: 1U
  • Condition: New
  • Category: Network Hardware
Need Help?   let's talk about it.

Scaling-Out Data Centers with Fourteen Data Rate (FDR) InfiniBand
Faster servers based on PCIe 3.0, combined with high-performance storage and applications that use increasingly complex computations, are causing data bandwidth requirements to spiral upward. As servers are deployed with next generation processors, High-Performance Computing (HPC) environments and Enterprise Data Centers (EDC) will need every last bit of bandwidth delivered with Mellanox's next generation of FDR InfiniBand high-speed smart switches.

FDR

FDR InfiniBand technology moves from 8b/10b encoding a more efficient 64/66 encoding while increasing the per lane signaling rate to 14Gb/s. Mellanox end-to-end systems can also take advantage of the efficiency of 64/66 encoding using Mellanox FDR 10 supporting 20% more bandwidth over QDR using the same cables/ connectors designed for 40GbE.

Sustained Network Performance

Built with Mellanox's latest SwitchX® InfiniBand switch device, the SX6025 provides up to thirty-six 56Gb/s full bi-directional bandwidth per port. These stand-alone switches are an ideal choice for top-of-rack leaf connectivity or for building small to extremely large sized clusters.

General Information
Manufacturer
Mellanox Technologies Ltd
Manufacturer Part Number
MSX6025F-1SFS
Manufacturer Website Address
http://www.mellanox.com
Brand Name
Mellanox
Product Line
SwitchX-2
Product Model
SX6025
Product Name
SwitchX-2 SX6025 InfiniBand Switch
Product Type
InfiniBand Switch
Interfaces/Ports
Number of Infiniband Ports
36
Media & Performance
Data Transfer Rate
56 Gbit/s
Management & Protocols
Manageable
Yes
Physical Characteristics
Compatible Rack Unit
1U
Form Factor
Rack-mountable
Height
1.7"
Width
16.8"
Depth
24.7"
Weight (Approximate)
20.50 lb
Miscellaneous
Environmentally Friendly
Yes
Environmental Certification
RoHS-6
Warranty
Limited Warranty
1 Year
