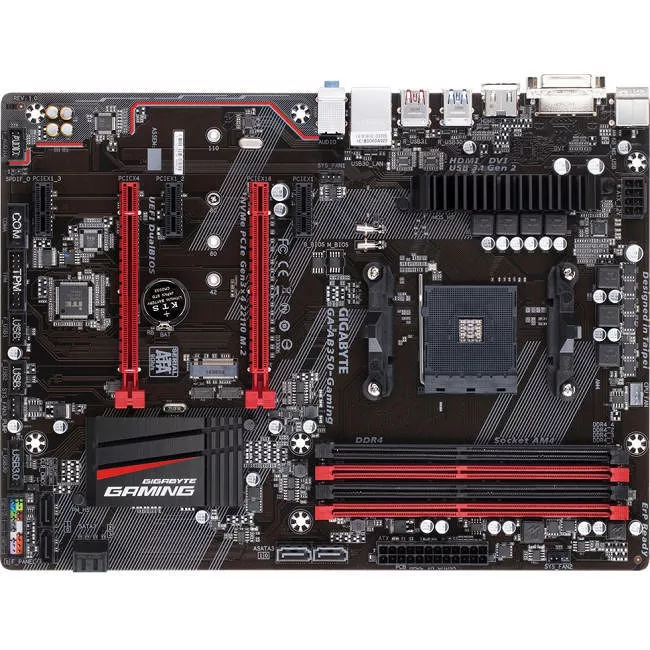

GIGABYTE GA-AB350-GAMING - ATX - AMD RYZEN, AMD 7TH GENERATION A-SERIES / ATHLON - AMD B35

MPN # GA-AB350-GAMING UPC # 889523009215
Condition: New
Product highlights:
  • Processor Socket: Socket AM4
  • Total Processor Supported: 1
  • Memory Technology: DDR4 SDRAM
  • Maximum Memory: 64 GB
Contact sales for pricing

Need Help?

let's talk about it.

Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

All Hybrid Fan Pin Headers

  • All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.
  • Supports up to 2 amps with built-in overcurrent protection-a must for high-end high current fans.

New Smart Fan 5 Software

Interoperable Sensors and Fans

Each fan can be customized to operate at different speeds according to any defined temperature source input (except the CPU fan).

Fan Curve

Customize fan curves based on specific temperatures with the intuitive graphical UI.

Choose from different modes, Quiet to Full Speed, to match your system usage scenario. For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.



Enhanced BIOS Interface

The enhanced BIOS interface also has the advanced features seen in the Smart Fan 5 UI, such as: the ability to set triggers based on different temperature sensors on the board, fan curve definition and the temperature interval setting, which can prevent fan rotation noise caused by sudden temperature change-all without having to load Windows.

Immersive VR Gaming Experience

> VR requires more performance than Full HD graphics for a steady 90FPS or greater.

> Only Gaming PCs can provide the best VR experience.

Realtek® GbE LAN with cFosSpeed Internet Accelerator Networking

Realtek® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

Fast Onboard Storage with NVMe PCIe Gen3 x4 110mm M.2 (Up to 32 Gb/s)

GIGABYTE's M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interfaces for M.2 SSD devices.



Fast USB 3.1 Gen 2 Solution

The latest USB 3.1 Gen 2 offers staggering 10Gb/s transfer speeds. 2x faster than USB 3.1 Gen 1 along with backwards compatibility with existing USB devices.

GIGABYTE Patented Double Locking Bracket

Anti-Sulfur Resistor Design

Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.



High Quality Onboard Audio Design

Delivers high quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.

General Information
Manufacturer
GIGABYTE Technology, Inc
Manufacturer Part Number
GA-AB350-Gaming
Manufacturer Website Address
http://www.gigabyte.us
Brand Name
Gigabyte
Product Line
Ultra Durable
Product Model
GA-AB350-Gaming
Product Name
Ultra Durable GA-AB350-Gaming (rev. 1.0) Desktop Motherboard
Product Type
Desktop Motherboard
Processor & Chipset
Chipset Manufacturer
AMD
Total Processor Supported
1
Processor Socket
Socket AM4
Processor Supported
  • A-Series
  • Athlon
  • Ryzen
  • Memory
    Number of Memory Slots
    4
    Memory Form Factor
  • DIMM
  • UDIMM
  • Maximum Memory
    64 GB
    Memory Technology
    DDR4 SDRAM
    Memory Speed Supported
  • 2.93 GHz (O.C.)
  • 2.40 GHz
  • 3.20 GHz (O.C.)
  • 2.13 GHz
  • 2.67 GHz
  • I/O Controller
    Controller Type
    Serial ATA/600
    RAID Supported
    Yes
    RAID Levels
  • 10
  • 1
  • 0
  • Video
    Onboard Video
    CPU Dependent Video
    Audio
    Audio Channels
    7.1
    Network & Communication
    Gigabit Ethernet
    Yes
    I/O Expansions
    Number of Total Expansion Slots
    5
    Total Number of PCI Express Slots
    5
    Number of PCI Express x1 Slots
    3
    Number of PCI Express x16 Slots
    2
    Interfaces/Ports
    Total Number of USB Ports
    8
    Number of USB 3.1 Ports
    6
    HDMI
    Yes
    DVI
    Yes
    Onboard Interfaces
    Number of SATA Interfaces
    6
    Number of M.2 Interfaces
    1
    Total Number of Onboard USB Ports
    6
    Number of Onboard USB 3.1 Ports
    2
    Onboard S/PDIF Header
    Yes
    Physical Characteristics
    Form Factor
    ATX
    Width
    12"
    Depth
    8.9"
