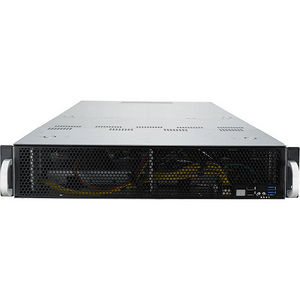

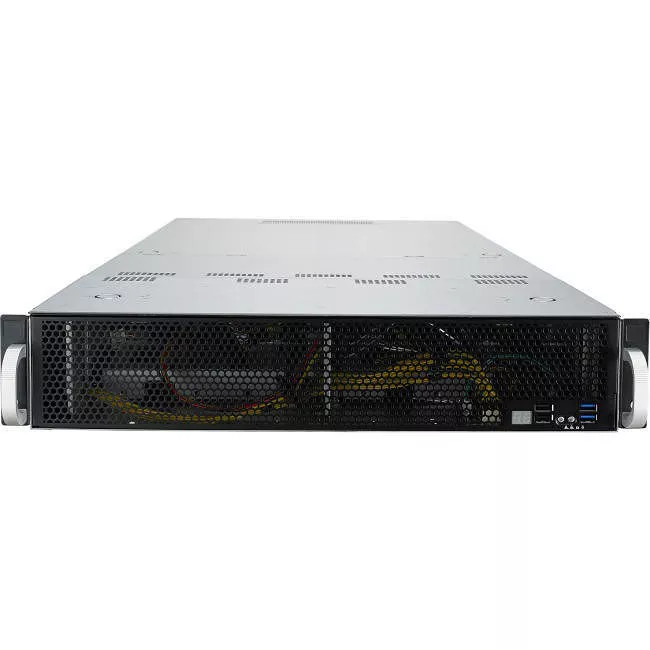

ASUS ESC4000 G4X 2U Rack Barebone System - 4x GPU - Intel C621 Chipset - Dual Socket P LGA 3647

MPN # ESC4000 G4X
Condition: New
Product highlights:
  • Number of GPUs Supported: 4
  • Processor Socket: Socket P LGA-3647
  • Maximum Memory: 2 TB
  • Memory Standard: DDR4-2666/PC4-21300
Contact sales for pricing

Need Help?

let's talk about it.

Intel® Xeon® Scalable platform design

ASUS ESC4000 G4X is built on the Intel® Xeon® Scalable Platform to deliver incredible 2U server performance, packing incredible power into minimal space. 16 DIMM slots provide best-in-class memory capacity and bandwidth, and an integrated I/O controller on the processor eliminates data transfer bottlenecks caused by discrete I/O chipsets for reduced latency and dramatically faster system

Flexible choice on versatile accelerators

ESC4000 G4X supports up to four double-deck server GPUs in 2U form factor. Broad GPU support including NVIDIA, AMD and Intel.

Flexible 8+2 expansion slots in a 2U server

ESC4000 G4X offers eight full-length PCI Express 3.0 x16 (4 at x16 link or 8 at x8 link), one low-profile PCI Express 3.0 x24 with support of a riser card for additional one PCI Express x16 (x16 Gen3 link) and one PCI Express x8 (x8 Gen3 link). Flexible expandability in a 2U form factor supports diverse storage and networking applications to meet the demands of future expansion and high scalability.

User-friendly design for easier server maintenance

ESC4000 G4X features numerous user-friendly design features that simplify server maintenance. The server's Q-code is visible from the outside of the case to make diagnosing issues easier and more convenient. A tool-less chassis design is included for easy server installation and removal, and a tool-less, hot-swappable fan provides faster and simpler maintenance.

Expandable storage for faster transfer speeds

ESC4000 G4X features one M.2 slot accommodates 2280-size SSDs with support for additional OS storage and PCIe 3.0 x4 bandwidth - 5.3X faster than 6 Gb/s SATA III - for faster boot speeds. ESC4000 G4X is ideal for data centers with high storage and processing demands. ESC4000 G4X supports two 3.5" or 2.5" internal HDD cages.

Fully integrated remote server management

The latest ASMB9-iKVM module enables remote BIOS updates, standalone KVM/Java utilities, video recording and BSOD capture. With out-of-band management, ASMB9-iKVM provides around-the-clock remote monitoring and diagnostics - even if the server operating system is down or offline - through a user-friendly web-based graphical interface that works with all major browsers. ASUS Control Center (ACC) is a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables easier server management with functions such as BIOS updating without restarting the system, remote monitoring of multiple systems via mobile devices, and one-click software updates and dispatching.
Learn more about ACC.

Smart thermal design for energy efficiency

ESC4000 G4X features a smart thermal radar design with more ambient thermal sensors for the CPU, memory, GPU, SSD, LAN card and front-panel board that provide improved temperature monitoring and enable dynamic fan speed adjustment for better power efficiency. This smart thermal design reduces fan power consumption by up to 20% and eliminates the power-sharing board for improved efficiency and lower operation costs.

General Information
Manufacturer
ASUS Computer International
Manufacturer Part Number
ESC4000 G4X
Manufacturer Website Address
http://usa.asus.com
Brand Name
Asus
Product Model
ESC4000 G4X
Product Name
ESC4000 G4X Barebone System
Product Type
Barebone System
Processor & Chipset
Number of Processors Supported
2
Processor Socket
Socket P LGA-3647
Processor Supported
  • Xeon Platinum
  • Xeon Gold
  • Xeon Silver
  • Xeon Bronze
  • 64-bit Processing
    Yes
    Chipset Manufacturer
    Intel
    Chipset Model
    C621
    Memory
    Maximum Memory
    2 TB
    Memory Technology
    DDR4 SDRAM
    Memory Standard
    DDR4-2666/PC4-21300
    Number of Total Memory Slots
    16
    Controllers
    Controller Type
    Serial ATA/600
    RAID Supported
    Yes
    Display & Graphics
    Graphics Controller Manufacturer
    ASPEED
    Graphics Controller Model
    AST2500
    Graphics Memory Capacity
    64 MB
    Network & Communication
    Ethernet Technology
    Gigabit Ethernet
    I/O Expansions
    Number of Total Expansion Bays
    2
    Number of Total Expansion Slots
    10
    Number of PCI Express x8 Slots
    1
    Number of PCI Express x16 Slots
    9
    Interfaces/Ports
    Total Number of USB Ports
    6
    Number of USB 3.0 Ports
    4
    Number of SATA Interfaces
    2
    Software
    Operating System Supported
  • Windows Server 2016
  • Windows Server 2012 R2
  • Red Hat Enterprise Linux
  • SuSE Linux Enterprise Server
  • CentOS
  • Ubuntu Server
  • Red Hat Fedora Core
  • Power Description
    Input Voltage
  • 120 V AC
  • 230 V AC
  • Number of Power Supplies Installed
    2
    Maximum Power Supply Wattage
    1600 W
    Physical Characteristics
    Form Factor
    Rack-mountable
    Rack Height
    2U
    Height
    3.5"
    Width
    17.3"
    Depth
    31.5"
    Miscellaneous
    Environmentally Friendly
    Yes
    Environmental Certification
    RoHS
