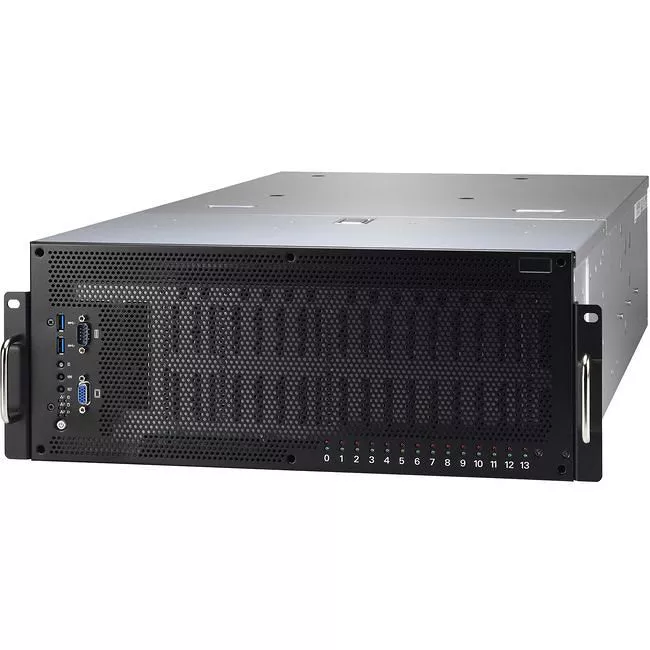

SabreEDGE 4U Server - ES4-2660914

Please log in to add an item to your wishlist. MPN: ES4-2660914

SabreEDGE 4U Server - ES4-2660914

Highlights

Overview

Specifications

The SabreEDGE ES4-2660914 is based on the Intel Xeon Scalable family. It offers fourteen 2.5" and support for eight double-wide PCI-E cards.

Specifications

Processor & Chipset

Number of Processors Supported

Processor Socket

LGA 3647

Processor Type

Xeon

Processor Supported

Bronze 31XX
Bronze 32XX
Silver 41XX
Silver 42XX
Gold 51XX
Gold 52XX
Gold 61XX
Gold 62XX
Platinum 81XX
Platinum 82XX

Thermal Design Power (TDP)

Up to 205W

Chipset Manufacturer

Intel

Chipset Model

C621

Memory

Maximum Memory

1.5 TB

Memory Technology

DDR4 SDRAM

Memory Standard

DDR4-2666/PC4-21300

Number of Total Memory Slots

Controllers

SATA3

Via C621 chipset
Intel RST RAID 0, 1, 5, 10

Display & Graphics

Graphics Controller Manufacturer

ASPEED

Graphics Controller Model

AST2500

Network & Communication

Ethernet Technology

10GBASE-T

I/O Expansions

PCI Express

9x PCI-E 3.0 x16 slots (supports 8x double-wide cards)
2x PCI-E 3.0 x8 slots (for mezzanine)

Drive Bays

External

14x 2.5" hot-swap drive bays

Interfaces/Ports (per node)

Total Number of USB Ports

Number of USB 3.0 Ports

2 (front)

Number of SATA Interfaces

LAN

2x RJ45 10GBASE-T Ethernet LAN Ports

Onboard Video

1x VGA Connector

Power Description

Number of Power Supplies

Redundant Power Supplies

Yes

Maximum Power Supply Wattage

3200 W

Certification

80 Plus Platinum

Physical Characteristics

Color

Black

Form Factor

Rack-mountable

Rack Height

Height

6.93"

Width

17.24"

Depth

30.31
