SabreEDGE 8U MI325X OAM Server - ES4-10693866

Highlights

Overview

Specifications

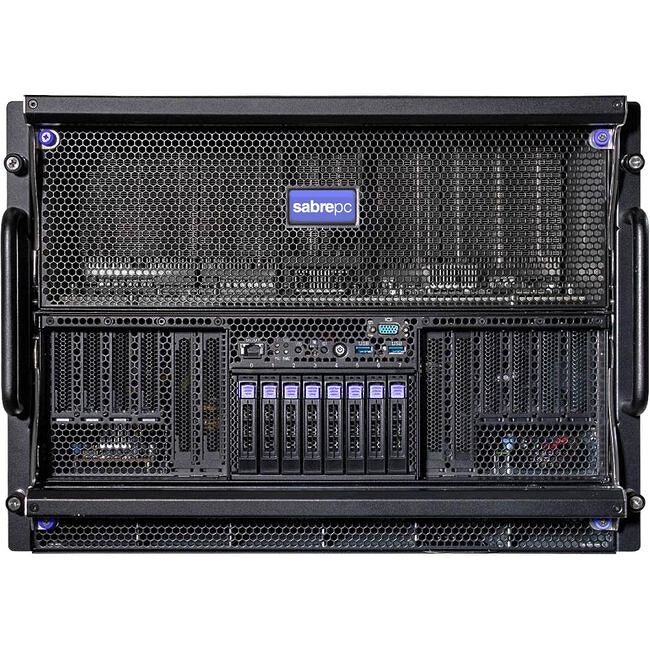

The SabreEDGE ES4-10693866 is based on the AMD EPYC 9755 processor. It offers up to eight 2.5" hot-swap NVMe U.2 drive bays, and eight AMD Instinct MI325X OAM modules.

Specifications

Processor & Chipset

Number of Processors Supported

Processor Socket

Socket SP5 LGA-6096

Processor Type

EPYC

Processor Model

9755

Thermal Design Power (TDP)

500 W

GPU

8x AMD Instinct MI325X OAM

Chipset Manufacturer

N/A

Chipset Model

SoC

Memory

Memory Technology

DDR5 SDRAM

Memory Standard

DDR5-6400/PC5-51200

Number of Total Memory Slots

Controllers

NVMe

Via SoC/PCIe Switch Board

Display & Graphics

Graphics Controller Manufacturer

ASPEED

Graphics Controller Model

AST2600

Network & Communication

Ethernet Technology

I/O Expansions

PCI Express

4x PCI-E 5.0 x16 FHHL slots (Front)
8x PCI-E 5.0 x16 HHHL slots (Front)
2x PCI-E 5.0 x4 M.2 slot (2280/22110)

Drive Bays

Hot-swap

8x 2.5 hot-swap drive bays (Front)
Supports PCI-E 5.0 x4 NVMe drives

Interfaces/Ports

Total Number of USB 3.2 Gen1 Ports

2 (Front)

Number of NVMe Interfaces

8x U.2
2x M.2

LAN

1x RJ45 Dedicated IPMI Port (Front)

Onboard Video

1x VGA Connector (Front)

TPM

1x TPM Header (SPI)

Power Description

Number of Power Supplies

Redundant Power Supplies

Yes (6+2)

Maximum Power Supply Wattage

3300 W

Certification

80 Plus Titanium

Physical Characteristics

Color

Black

Form Factor

Rack-mountable

Rack Height

Height

13.82"

Width

17.63"

Depth

33.46"
