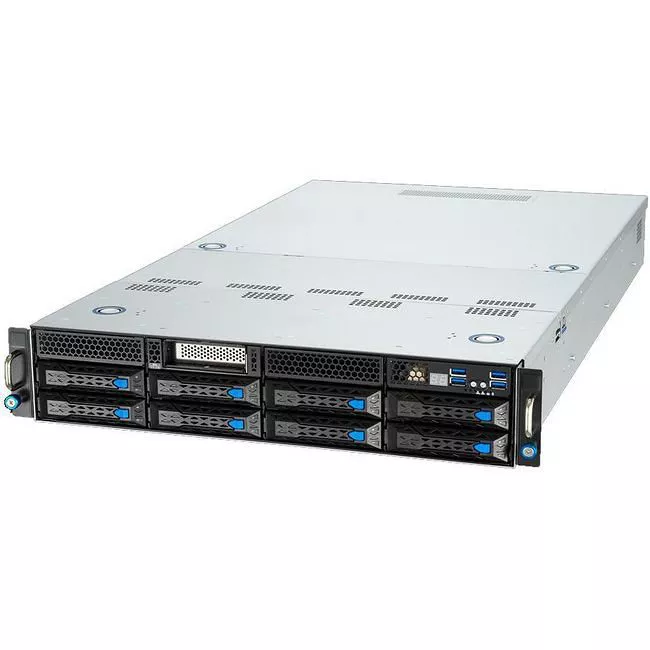

SabreEDGE 2U Server - ES2-3085210

Please log in to add an item to your wishlist. MPN: ES2-3085210

SabreEDGE 2U Server - ES2-3085210

Highlights

Overview

Specifications

The SabreEDGE ES2-3085210 is based on the AMD EPYC 7002/7003 Series processor. It features eight 3.5"/2.5" hot-swap drives and four PCI-E 4.0 double-wide cards.

Specifications

Processor & Chipset

Number of Processors Supported

Processor Socket

Socket SP3

Processor Type

EPYC

Processor Supported

7002-Series
7003-Series
7003X-Series

Thermal Design Power (TDP)

225 W

Memory

Memory Technology

DDR4 SDRAM

Memory Standard

DDR4-3200/PC4-25600

Number of Total Memory Slots

Controllers

SATA3

Via CPU

Display & Graphics

Graphics Controller Manufacturer

N/A

Graphics Controller Model

N/A

Network & Communication

Ethernet Technology

1000BASE-T

I/O Expansions

PCI Express

8x PCI-E 4.0 x16 slots (Supports 4x double-wide cards)
2x PCI-E 4.0 x16 slot (Low-Profile)
1x PCI-E 3.0 x8 slot (Low-Profile, Half-Length)
1x OCP 3.0 slot
1x PCI-E 3.0 x4 M.2 slot (22110)

Drive Bays

Hot-swap

8x 3.5"/2.5" Hot-swap drive bays
Support for 2x U.2 NVMe drives

Interfaces/Ports

Total Number of USB Ports

Number of USB 3.0 Ports

6 (4x front, 2x rear)

Number of SATA Interfaces

NVMe Interfaces

2x U.2
1x M.2

LAN

2x RJ45 1000BASE-T Ethernet LAN Ports

Onboard Video

1x VGA Connector

TPM

1x TPM 2.0 header

Power Description

Number of Power Supplies

Redundant Power Supplies

Yes

Maximum Power Supply Wattage

2200 W

Certification

80 Plus Platinum

Physical Characteristics

Color

Black

Form Factor

Rack-mountable

Rack Height

Height

3.46"

Width

17.48"

Depth

31.50"
