SabreEDGE 2U NVIDIA MGX™ Server - ES2-10401098

Please log in to add an item to your wishlist. MPN: ES2-10401098

SabreEDGE 2U NVIDIA MGX™ Server - ES2-10401098

Highlights

Overview

Specifications

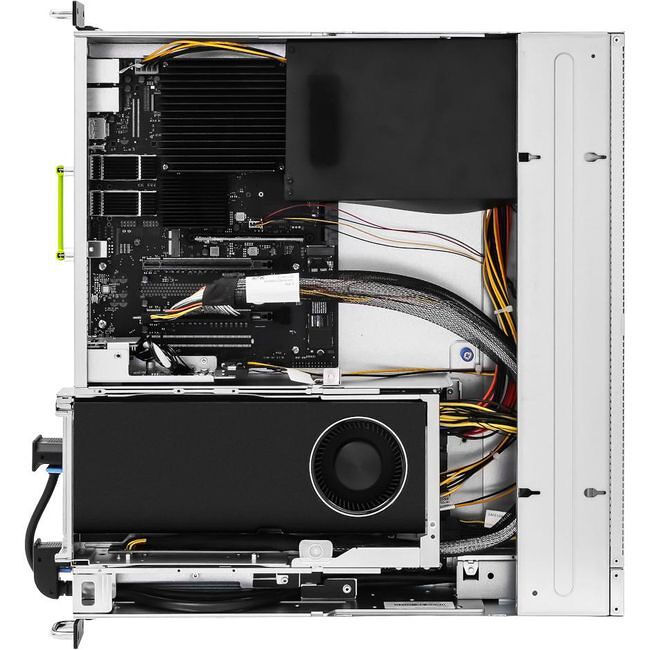

The SabreEDGE ES2-10401098 is based on the NVIDIA IGX T7000 processor. It offers support for one M.2 NVMe and one PCI-E 5.0 x16 Double-Wide card.

Specifications

Processor & Chipset

Number of Processors Supported

Processor Socket

N/A

Processor Type

IGX

Processor Model

T7000

Thermal Design Power (TDP)

N/A

Chipset Manufacturer

N/A

Chipset Model

SoC

Memory

Memory Technology

LPDDR5X

Controllers

NVMe

Via SoC

Display & Graphics

Graphics Controller Manufacturer

ASPEED

Graphics Controller Model

AST2600

Network & Communication

Ethernet Technology

1000BASE-T
200GbE

I/O Expansions

PCI Express

1x PCI-E 5.0 x16 FHFL slots (Supports Double-Wide GPU)
1x PCI-E 5.0 x2 M.2 slots (2280)

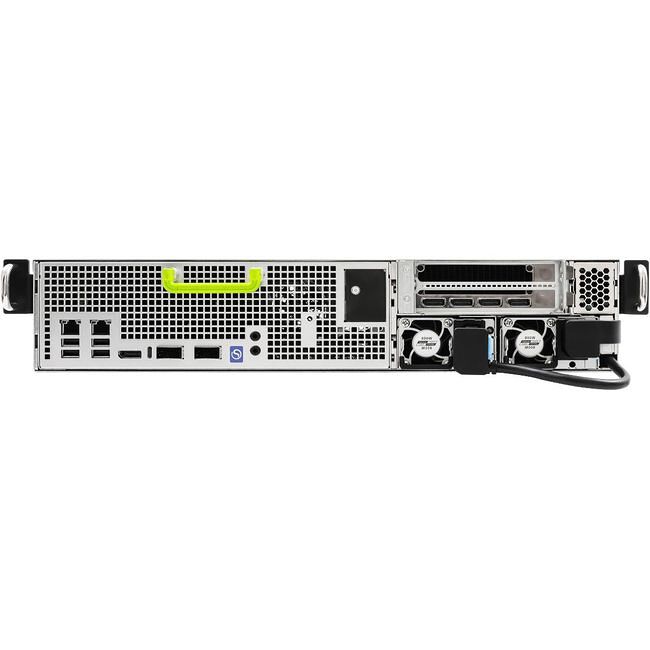

Interfaces/Ports

USB Ports

4x USB 3.2 Gen2 ports (Front, Type A)
1x USB 3.2 Gen2 ports (Front, Type C)

Number of NVMe Interfaces

1x M.2

LAN

2x RJ45 1000BASE-T (1GbE) Ports
1x RJ45 Management (1GbE) Port
2x QSFP28 (200GbE) ConnectX-7 Ports

Onboard Video

1x DisplayPort 1.4a

Trusted Platform Module

1x TPM Header with SPI interface (Optional)

Power Description

Number of Power Supplies

Redundant Power Supplies

Yes (1+1)

Maximum Power Supply Wattage

800 W

Certification

80 Plus Platinum

Physical Characteristics

Color

Black

Form Factor

Rack-mountable

Rack Height

Height

3.4"

Width

17.2"

Depth

16.5"
