SabreEDGE 1U Server - ES1-3751473

Highlights

Overview

Specifications

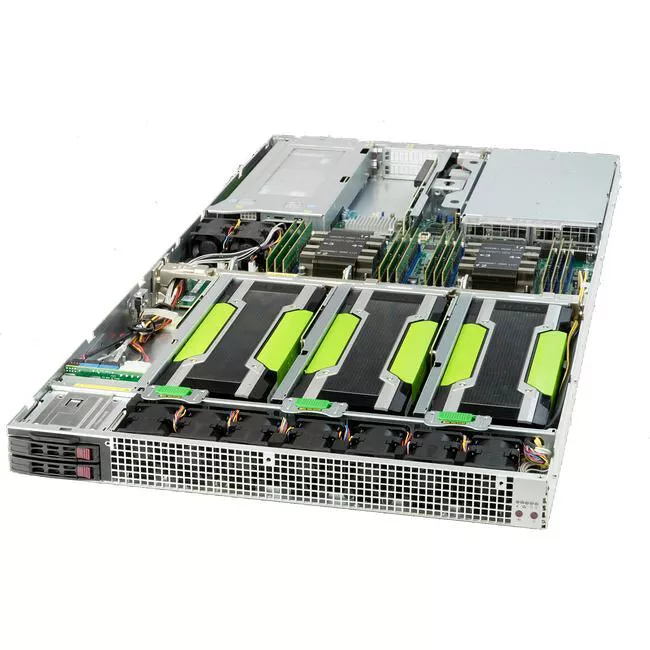

The SabreEDGE ES1-3751473 is based on the 3rd Gen Intel Xeon Scalable family. It offers two hot-swappable 2.5" drive bays, and support for up to four double-wide cards.

Specifications

Processor & Chipset

Number of Processors Supported

Processor Socket

Socket P+ LGA-4189

Processor Type

Xeon

Processor Supported

Silver 43XX
Gold 53XX
Gold 63XX
Platinum 83XX

Thermal Design Power (TDP)

Up to 205W

Chipset Manufacturer

Intel

Chipset Model

C621A

Memory

Maximum Memory

4 TB

Memory Technology

DDR4 SDRAM
DDR4 NVDIMM (Intel Optane DCPMM)

Memory Standard

DDR4-3200/PC4-25600

Number of Total Memory Slots

Controllers

Controller Type

SATA3

Display & Graphics

Graphics Controller Manufacturer

ASPEED

Graphics Controller Model

AST2600

I/O Expansions

PCI Express

4x PCI-E 4.0 x16 slots (Supports double wide card)
2x PCI-E 4.0 x16 slot (Low-profile)

Drive Bays

Hot-swap

2x 2.5" Hot-swap drive bays

Internal

2x 2.5" drive bays

Interfaces/Ports

Total Number of USB Ports

Number of USB 3.0 Ports

2 (rear)

Number of SATA Interfaces

LAN

1x RJ45 Dedicated IPMI Port

Onboard Video

1x VGA Connector

Power Description

Number of Power Supplies

Maximum Power Supply Wattage

2000 W

Certification

80 Plus Titanium

Physical Characteristics

Color

Black

Form Factor

Rack-mountable

Rack Height

Height

1.7"

Width

17.2"

Depth

35.2"
