SabreEDGE 1U Server - ES1-1915325

Please log in to add an item to your wishlist. MPN: ES1-1915325

SabreEDGE 1U Server - ES1-1915325

Highlights

Overview

Specifications

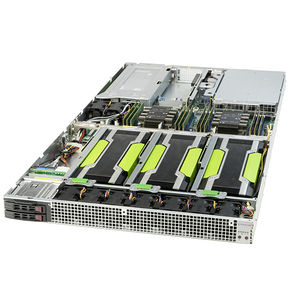

The SabreEDGE ES1-1915325 is based on the Intel Xeon Scalable family. It offers two hot-swappable 2.5" drive bays, and support for up to four double-wide cards.

Specifications

Processor & Chipset

Number of Processors Supported

Processor Socket

LGA 3647

Processor Type

Xeon

Processor Supported

Bronze 31XX
Bronze 32XX
Silver 41XX
Silver 42XX
Gold 51XX
Gold 52XX
Gold 61XX
Gold 62XX
Platinum 81XX
Platinum 82XX

Thermal Design Power (TDP)

205 W

UPI

3 UPI up to 10.4 GT/s

Memory

Maximum Memory

1.5 TB

Memory Technology

DDR4 SDRAM
DDR4 NVDIMM (Intel Optane DCPMM)

Memory Standard

DDR4-2933/PC4-23400

Number of Total Memory Slots

Controllers

Controller Type

SATA3

Display & Graphics

Graphics Controller Manufacturer

ASPEED

Graphics Controller Model

AST2500

Network & Communication

Ethernet Technology

10GBASE-T

Number of Network (RJ-45) Ports

I/O Expansions

PCI Express

4x PCI-E 3.0 x16 slots (Supports 4x double wide card)
1x PCI-E 3.0 x16 slot (Low-profile)
1x PCI-E 3.0 x8 slot (Low-profile)

Drive Bays

Hot-swap

2x 2.5" Hot-swap drive bays

Internal

2x 2.5" drive bays

Interfaces/Ports

Total Number of USB Ports

Number of USB 3.0 Ports

4 (rear)

Number of SATA Interfaces

Number of NVMe Ports

LAN

2x RJ45 10GBASE-T Ethernet LAN Ports
1x RJ45 Dedicated IPMI Port

Onboard Video

1x VGA Connector

Serial Header

1x Fast UART 16550 header

Power Description

Number of Power Supplies

Maximum Power Supply Wattage

2000 W

Certification

80 Plus Titanium

Physical Characteristics

Color

Black

Form Factor

Rack-mountable

Rack Height

Height

1.7"

Width

17.2"

Depth

35.2"
