SabreEDGE ES1-1915312 1U Server
MPN # ES1-1915312
Condition: New
Product highlights:
  • Processor Supported: 2x Intel Xeon Scalable family
  • Drive Bays: 4x 2.5" Hot-Swap
  • Supports up to 3x Double-Wide cards
  • Rack Height: 1U
Contact sales for pricing
Need Help?   let's talk about it.
sales@sabrepc.com   |   408.914.8196

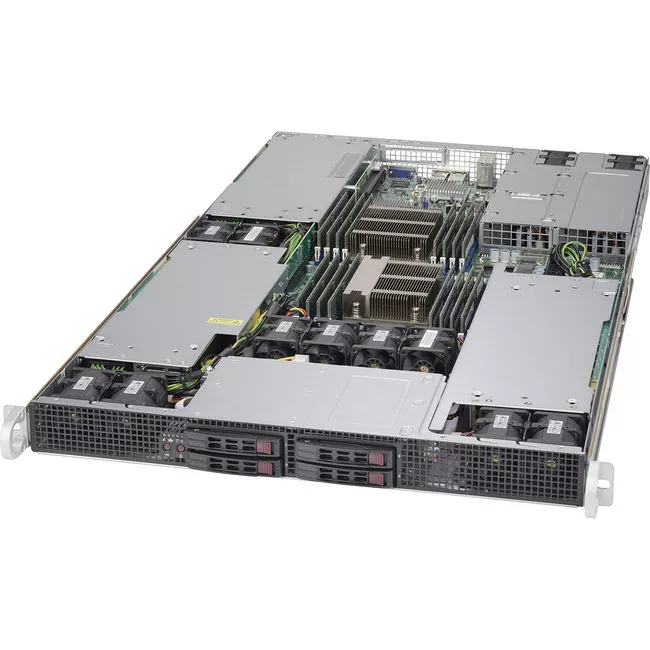

The SabreEDGE ES1-1915312 is based on the Intel Xeon Scalable family. It offers four hot-swappable 2.5" drive bays, and support for up to three double-wide cards.

Processor & Chipset
Number of Processors Supported
2
Processor Socket
LGA 3647
Processor Type
Xeon
Processor Supported
  • Bronze 31XX
  • Bronze 32XX
  • Silver 41XX
  • Silver 42XX
  • Gold 51XX
  • Gold 52XX
  • Gold 61XX
  • Gold 62XX
  • Platinum 81XX
  • Platinum 82XX
Thermal Design Power (TDP)
165 W
UPI
3
Memory
Maximum Memory
2 TB
Memory Technology
  • DDR4 SDRAM
  • DDR4 NVDIMM (Intel Optane DCPMM)
Memory Standard
DDR4-2933/PC4-23400
Number of Total Memory Slots
16
Controllers
Controller Type
SATA3
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Network & Communication
Ethernet Technology
Via optional SIOM modules
I/O Expansions
PCI Express
  • 4x PCI-E 3.0 x16 slots (Supports 3x double wide card)
  • 1x PCI-E 3.0 x8 (in x16 slot, low-profile)
Drive Bays
Hot-swap
4x 2.5" Hot-swap drive bays
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 3.0 Ports
2 (rear)
Number of SATA Interfaces
2
Number of NVMe Interfaces
2
Optional SIOM add-on-modules
  • 2x 25G (SFP28)
  • 1x FDR IB (QSFP), 1x 1GbE (RJ45)
  • 2x FDR IB (QSFP), 1x 1GbE (RJ45)
  • 4x 10G (RJ45)
  • 2x 10G (RJ45)
  • 2x 10G (SFP+)
  • 4x 10G (SFP+)
  • 4x 1GbE (RJ45)
  • 2x 1GbE (RJ45)
Onboard Video
1x VGA Connector
Power Description
Number of Power Supplies
2
Maximum Power Supply Wattage
1600 W
Certification
80 Plus Platinum
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
1U
Height
1.7"
Width
17.2"
Depth
30.6"
