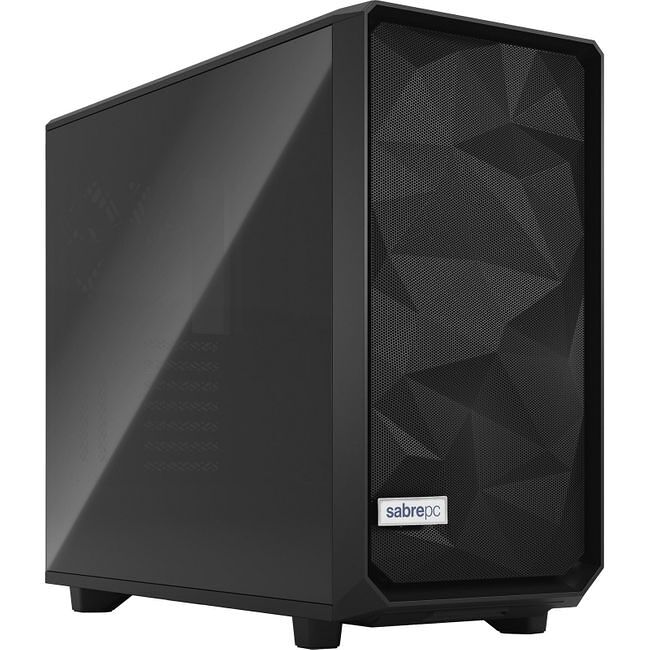

SabreCORE Mid-Tower Workstation - CWS-6082839

Please log in to add an item to your wishlist. MPN: CWS-6082839

SabreCORE Mid-Tower Workstation - CWS-6082839

Highlights

Overview

Specifications

The SabreCORE CWS-6082839 is based on the AMD Ryzen 7000 Series. It offers two 2.5" and six 2.5"/3.5" internal drive bays, and support for one double-wide PCI-E card.

Specifications

Processor & Chipset

Number of Processors Supported

Processor Manufacturer

AMD

Processor Socket

Socket AM5 LGA-1718

Processor Type

Ryzen

Processor Supported

Ryzen 5 7000 Series
Ryzen 7 7000 Series
Ryzen 9 7000 Series

Chipset Manufacturer

AMD

Chipset Model

X670

Memory

Maximum Memory

128 GB

Memory Technology

DDR5 SDRAM

Memory Standard

DDR5-5200/PC5-41600

Number of Total Memory Slots

Controllers

SATA3

Via X670 chipset
RAID 0, 1, 10

Network & Communication

Ethernet Technology

2.5GBASE-T

I/O Expansions

PCI Express

2x PCI-E 5.0 x16 slots (1x Double-wide card support, x16 or x8/x8)
1x PCI-E 4.0 x1 slot

Drive Bays

Fixed

2x 2.5" drive bays
6x 2.5"/3.5" drive bays

Interfaces/Ports

Rear USB Ports

2x USB 4 Type-C ports
1x USB 3.2 Gen 2x2 Type-C port
9x USB 3.2 Gen 2 ports (8x Type-A, 1x Type-C)

Front USB Ports

1x USB 3.1 Gen 2 Type-C port
2x USB 3.0 ports

Number of SATA Interfaces

6x SATA3 Ports

M.2

2x M.2 PCI-E 5.0 x4 (Onboard, Up to 22110)
1x M.2 PCI-E 5.0 x4 (Card, Up to 22110)
2x M.2 PCI-E 4.0 x4 (Card, Up to 2280)

LAN

1x RJ45 2.5GBASE-T Ethernet LAN Ports

Graphics

1x HDMI

Audio

7-Channel HD Audio

Wireless

2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Bluetooth 5.3

Power Description

Number of Power Supplies

Redundant Power Supplies

Physical Characteristics

Color

Black

Form Factor

Mid-Tower

Height

18.66"

Width

9.45"

Depth

21.34"
