SabreCORE Mid-Tower Workstation - CWS-2629841

Please log in to add an item to your wishlist. MPN: CWS-2629841

SabreCORE Mid-Tower Workstation - CWS-2629841

Highlights

Overview

Specifications

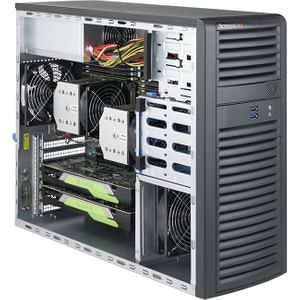

The SabreCORE CWS-2629841 is based on the Intel Xeon Scalable family. It offers four 3.5" internal drive bays and support for up to two double-wide PCI-E cards

Specifications

Processor & Chipset

Number of Processors Supported

Processor Type

Xeon

Processor Socket

LGA 3647

Processor Supported

Bronze 31XX
Bronze 32XX
Silver 41XX
Silver 42XX
Gold 51XX
Gold 52XX
Gold 61XX
Gold 62XX
Platinum 81XX
Platinum 82XX

Thermal Design Power (TDP)

205W

Chipset Manufacturer

Intel

Chipset Model

C621

Memory

Maximum Memory

2 TB

Memory Technology

DDR4 SDRAM
DDR4 NVDIMM (Intel Optane DCPMM)

Memory Standard

DDR4-2933/PC4-23400

Number of Total Memory Slots

Controllers

SATA3

Via C621 chipset
RAID 0, 1, 5, 10

Network & Communication

Ethernet Technology

1000GBASE-T

I/O Expansions

PCI Express

4x PCI-E 3.0 x16 slots
2x PCI-E 3.0 x8 slots
1x PCI-E 3.0 x4 M.2 slots (2260/2280/22110)

Drive Bays

Internal

4x 3.5" drive bays

External

2x 5.25" bays

Interfaces/Ports

Number of USB 3.0 Ports

6 (2x front, 4x rear)

Number of USB 3.1 Ports

2 (rear)

Number of SATA Interfaces

Number of M.2 Interfaces

LAN

2x RJ45 1000BASE-T Ethernet LAN Ports

Audio

7.1 HD Audio with optical S/PDIF

Serial Port / Header

1 COM port (header)

DOM

1 Disk on Module port

TPM

1 TPM 2.0 header

Power Description

Number of Power Supplies

Redundant Power Supplies

Maximum Power Supply Wattage

1200 W

Certification

80 Plus Platinum

Physical Characteristics

Color

Black

Form Factor

Tower

Height

16.7"

Width

7.6"

Depth

20.68"
