SabreCORE CWS-2038021 Mid-Tower Workstation
MPN # CWS-2038021
Condition: New
Product highlights:
  • Form Factor: Mid-Tower
  • Processor: 1x Intel X-Series
  • Drives: 2x 5.25" External, 6x 3.5" Internal, 4x 2.5" Internal
  • Supports up to 2x Double-Wide cards
Contact sales for pricing
Need Help?   let's talk about it.
sales@sabrepc.com   |   408.914.8196

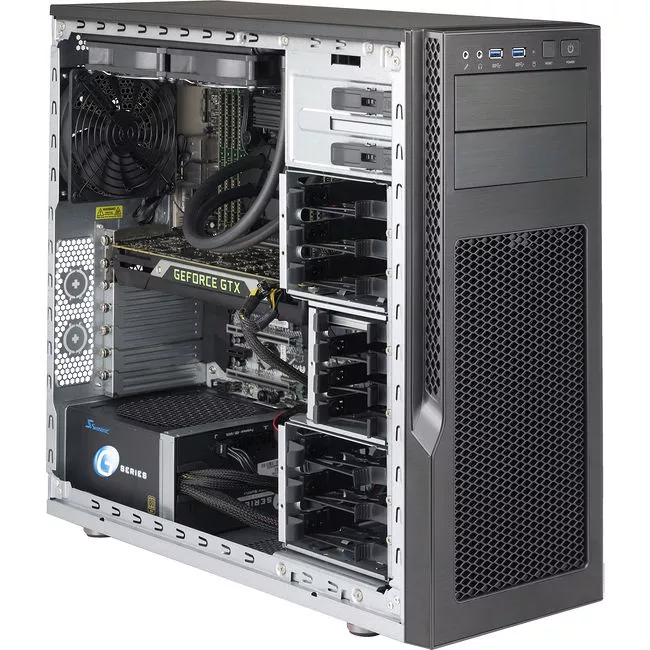

The SabreCORE CWS-2038021 is based on the Intel Core X-Series. It offers six 3.5" and four 2.5" internal drive bays, and support for up to two Double-Wide cards.

Processor & Chipset
Number of Processors Supported
1
Processor Manufacturer
Intel
Processor Socket
LGA 2066
Processor Type
  • Core X-Series
Processor Supported
  • Core i5
  • Core i7
  • Core i9
  • Core i9 Extreme
Chipset Manufacturer
Intel
Chipset Model
X299
Memory
Maximum Memory
128 GB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2666/PC4-21300
Number of Total Memory Slots
8
Controllers
SATA3
  • Via X299 Express chipset
  • RAID 0, 1, 5, 10
Audio
  • ALC1220 7.1 High Definition Audio
Network & Communication
Ethernet Technology
  • 1000BASE-T
I/O Expansions
PCI Express
  • 4x PCI-E 3.0 x16 slots (x8/xNA/x16/x16 or x8/x8/x8/x16 (Skylake-X) or NA/x4/x4/x8 (Kabylake-X))
  • 1x PCI-E 3.0 x1 slot
Drive Bays
Fixed
  • 6x 3.5" drive bays
  • 4x 2.5" drive bays
Peripheral
2x 5.25" drive bays
Interfaces/Ports
Number of USB Ports
  • 4x USB 3.0 ports (2x rear, 2x front)
  • 4x USB 3.1 ports (3x rear Type A, 1x rear Type C)
Number of SATA Interfaces
  • 6x SATA3 Ports
LAN
  • 2x RJ45 1000BASE-T Ethernet LAN Ports
Audio
  • 7.1 HD Jacks
Serial Port/Header
  • 1x serial port (header)
Power Description
Number of Power Supplies
1
Redundant Power Supplies
No
Maximum Power Supply Wattage
750 W
Certification
80 Plus Gold
Physical Characteristics
Color
Black
Form Factor
Mid-Tower
Height
18.1"
Width
7.9"
Depth
19.4"
