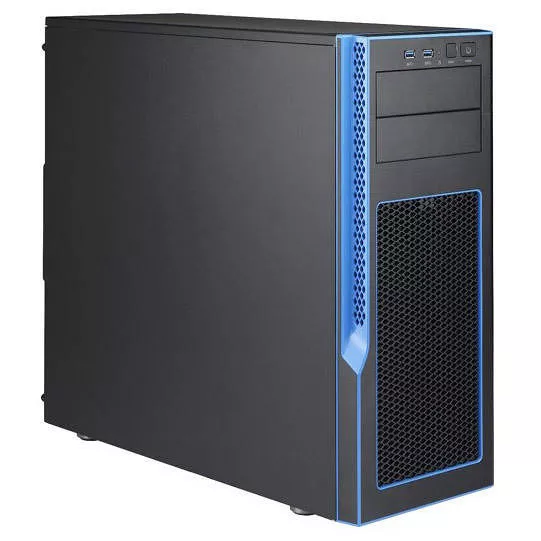

SabreCORE CWS-1760942 Mid-Tower Workstation
MPN # CWS-1760942
Condition: New
Product highlights:
  • Processor: 1x Intel Xeon Phi x200/x205
  • Drive Bays: 6x 3.5" Internal, 4x 2.5" Internal, 2x 5.25" External
  • 2x PCIe 3.0 x16, 1x PCIe 3.0 x4 slots
  • Form Factor: Mid-Tower
Contact sales for pricing
Need Help?   let's talk about it.

The SabreCORE CWS-1760942 is based on the Intel Xeon Phi x200/x205 families. It offers six 3.5" and four 2.5" Internal drive bays with support for two double-wide PCI-E cards.

Processor & Chipset
Number of Processors Supported
1
Processor Manufacturer
Intel
Processor Socket
LGA 3647
Processor Type
  • Xeon Phi
Processor Supported
  • x200
  • x205
Chipset Manufacturer
Intel
Chipset Model
C612
Memory
Maximum Memory
192 GB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2400/PC4-19200
Number of Total Memory Slots
6
Controllers
SATA3
  • Via C612 Express chipset
  • RAID 0, 1, 5, 10
Network & Communication
Ethernet Technology
  • 1000BASE-T
I/O Expansions
PCI Express
  • 2x PCI-E 3.0 x16 slots
  • 1x PCI-E 3.0 x4 slot
Drive Bays
Fixed
  • 6x 3.5" drive bays
  • 4x 2.5" drive bays
Peripheral
2x 5.25" drive bays
Interfaces/Ports
Number of USB Ports
  • 6x USB 3.0 ports (4x rear, 2x front)
Number of SATA Interfaces
  • 10x SATA3 Ports
LAN
  • 2x RJ45 1000BASE-T Ethernet LAN Ports
Serial Port/Header
  • 1x COM port (header)
Power Description
Number of Power Supplies
1
Redundant Power Supplies
No
Maximum Power Supply Wattage
750 W
Certification
80 Plus Gold
Physical Characteristics
Color
Black
Form Factor
Mid-Tower
Height
18.1"
Width
7.9"
Depth
19.4"
