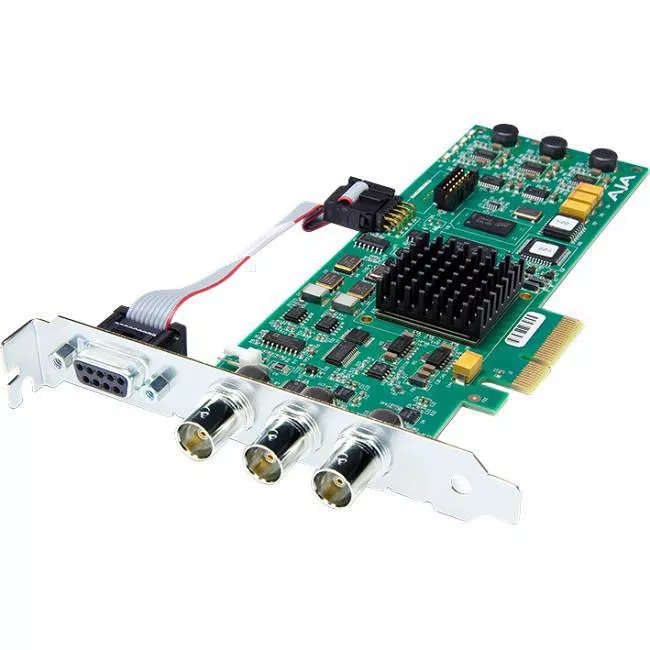

AJA CORVID 3G 4-lane PCIe Card, 3G / HD / SD SDI I/O

MPN # CORVID 3G
Availability: In Stock
Condition: New
Product highlights:
  • Product Type: Video Capturing Device
  • Maximum Resolution: 2048 x 1080
  • Platform Supported: Mac | PC
  • Host Interface: PCI Express x4
$795.00
FREE SHIPPING

Need Help?

let's talk about it.

PCIe 4x Card for 8/10-Bit Uncompressed Digital 3G, HD, and SD I/O

Corvid 3G expands on the capabilities of the original Corvid with support for 3G signals, opening up the possibility for handling higher quality signals while still providing all the benefits of the Corvid card. Available in a standard sized PCIe card or "Low Profile" for when space is of the essence, Corvid 3G has the extra horsepower for more demanding applications.

Features

  • PCI Express 4 lane
  • 1 Channel 3G, HD-SDI or SD-SDI input, 1 Channel 3G, HD-SDI or SD-SDI output
  • 8/10-bit YCbCr and RGB framebuffer formats
  • 1 Mixer/Keyer
  • Available in PCIe form factor (Corvid 3G) or PCIe Low Profile form factor (Corvid 3G LP)
  • 16-Ch SDI embedded audio I/O, 24-bit 48 kHz
  • HD/SD Genlock, Reference Video or LTC Input (selectable)
  • Three year warranty

Powerful Platforms for Development Partners

AJA's Developer Program allows partner companies to incorporate AJA products into their systems. By utilizing existing, proven video I/O devices, Developer Partners leverage AJA's expertise to develop and support these technologies, saving money and getting their integrated products to market more quickly.

General Information
Manufacturer
AJA Video System
Manufacturer Part Number
CORVID 3G
Manufacturer Website Address
http://www.aja.com
Brand Name
AJA VIDEO
Product Line
Corvid 3G
Product Name
Corvid 3G Video Capturing Device
Product Type
Video Capturing Device
Technical Information
Functions
  • Video Capturing
  • Audio Embedding
  • Maximum Resolution
    2048 x 1080
    Platform Supported
  • Mac
  • PC
  • Frame Lock/Genlock
    Yes
    Interfaces/Ports
    Host Interface
    PCI Express x4
    SDI
    Yes
    Physical Characteristics
    Form Factor
    Plug-in Card
    Height
    2.2"
    Width
    0.6"
    Depth
    6.6"
    Warranty
    Limited Warranty
    3 Year
