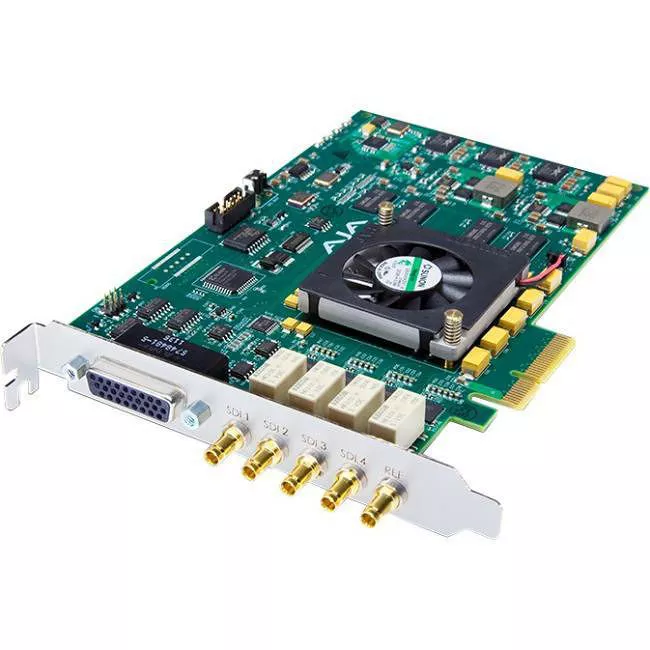

AJA CORVID 24 4-lane PCIe card, 4-in/4-out or single 4K/3G/HD/SD SDI I/O

MPN # CORVID 24
Availability: In Stock
Condition: New
Product highlights:
  • Product Type: Video Capturing Device
  • Maximum Resolution: 4096 x 2160
  • Host Interface: PCI Express 2.0 x4
  • Form Factor: Plug-in Card
$1,895.00
FREE SHIPPING

Need Help?

let's talk about it.

PCIe Gen 2.0 4x Card for 8/10-bit Uncompressed with 4-Channels I/O Digital 3G, HD, SD-SDI I/O and Bypass Relays for Video Loop Out

Take the next step in multi-channel video and audio I/O with Corvid 24. Supporting 4 channels of capture or output with separate LTC, embedded 24-bit audio and metadata for each channel all on a single PCIe card, Corvid 24 is the solution for high density I/O. All four connections can also be used to support full 4K I/O. The choice is yours. And with multiple operating system support, Corvid 24 will work in almost any environment.

Features

  • PCIe Gen 2.0 4-lane
  • Failover bypass relays on each channel
  • 4 Channels 3G, HD-SDI or SD-SDI I/0
  • All SD/HD/2K x 1080/4K Video Formats
  • 3G Input/Output for 1080p 50/60 and Video/Key (dual link not supported)
  • 8/10-bit YCbCr and RGB frame buffer formats
  • 2 Mixers/Keyer widgets. This allows output of two simultaneous video/key pairs over 3G. It also allows for up to two simultaneous downstream keyers
  • 4 Independent 16-ch 48 kHz SDI embedded audio I/O engines
  • Analog Color Black or HD Tri-Level Sync
  • Three year warranty

Powerful Platforms for
Development Partners

AJA's Developer Program allows partner companies to incorporate AJA products into their systems. By utilizing existing, proven video I/O devices, Developer Partners leverage AJA's expertise to develop and support these technologies, saving money and getting their integrated products to market more quickly.

General Information
Manufacturer
AJA Video System
Manufacturer Part Number
CORVID 24
Manufacturer Website Address
http://www.aja.com
Brand Name
AJA VIDEO
Product Line
Corvid 24
Product Name
Corvid 24 Video Capturing Device
Product Type
Video Capturing Device
Technical Information
Functions
  • Video Capturing
  • Audio Embedding
  • Maximum Resolution
    4096 x 2160
    Frame Lock/Genlock
    Yes
    Interfaces/Ports
    Host Interface
    PCI Express 2.0 x4
    SDI
    Yes
    Physical Characteristics
    Form Factor
    Plug-in Card
    Height
    3.9"
    Width
    0.7"
    Depth
    6.6"
    Weight (Approximate)
    11.20 oz
    Warranty
    Limited Warranty
    3 Year
