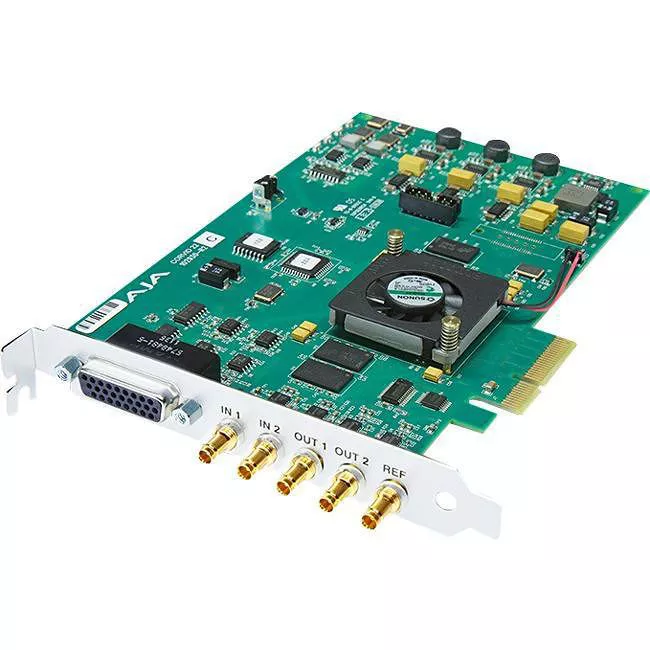

AJA CORVID 22-NC1 4-lane PCIe card, 2-in/2-out HD/SD/3G SDI

MPN # CORVID 22-NC1
Availability: In Stock
Condition: New
Product highlights:
  • Product Type: Video Capturing Device
  • Maximum Resolution: 2048 x 1080
  • Host Interface: PCI Express 1.0 x4
  • Form Factor: Plug-in Card
$1,365.00
FREE SHIPPING

Need Help?

let's talk about it.

PCIe Gen 1.0 4x Card for 8/10-bit Uncompressed with 2 Channels I/O Digital 3G, HD, SD-SDI I/O

Get multiple I/O channels without taking up a lot of space. Corvid 22 provides high performance, dual channel video and embedded 24-bit audio I/O in a single PCIe card. Two completely independent channels handle resolutions up to 2K and high frame rate 3G as well. With separate LTC and RS-422 machine control per channel and support for multiple operating systems, Corvid 22 gives you all the performance and capabilities you need.

Features

  • PCI Express 4-lane
  • 2 Channels 3G, HD-SDI or SD-SDI Input, 2 Channels 3G, HD-SDI or SD-SDI Output
  • All SD/HD/2K x 1080 Video Formats
  • 3G Input/Output for 1080p 50/60 and Video/Key (dual link not supported)
  • 8/10-Bit YCbCr and RGB frame buffer formats
  • 2 Mixer/Keyer widgets. This allows output of two simultaneous video/key pairs over 3G. It also allows for up to two simultaneous downstream keyers.
  • 2 Independent 16-Ch 48 kHz SDI Embedded Audio I/O engines
  • Analog Color Black or HD Tri-Level Sync
  • Three year warranty

Powerful Platforms for Development Partners

AJA's Developer Program allows partner companies to incorporate AJA products into their systems. By utilizing existing, proven video I/O devices, Developer Partners leverage AJA's expertise to develop and support these technologies, saving money and getting their integrated products to market more quickly.

General Information
Manufacturer
AJA Video System
Manufacturer Part Number
Corvid 22-NC1
Manufacturer Website Address
http://www.aja.com
Brand Name
AJA VIDEO
Product Line
Corvid 22
Product Name
Corvid 22 Video Capturing Device
Product Type
Video Capturing Device
Technical Information
Functions
  • Video Capturing
  • Audio Embedding
  • Maximum Resolution
    2048 x 1080
    Interfaces/Ports
    Host Interface
    PCI Express 1.0 x4
    SDI
    Yes
    Number of SDI Inputs
    2
    Number of SDI Outputs
    2
    Physical Characteristics
    Form Factor
    Plug-in Card
    Height
    3.9"
    Width
    0.7"
    Depth
    6.6"
    Weight (Approximate)
    9.60 oz
    Warranty
    Limited Warranty
    3 Year
