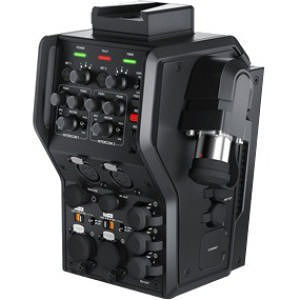

Blackmagic Design CINEURSANWFRCAM Camera Fiber Converter
MPN # CINEURSANWFRCAM
UPC # 9 338716 005325
Availability: In Stock
Condition: New
Product highlights:
  • Product Type: Camera Fiber Converter
  • Condition: New
  • Category: Video and Digital Cameras
  • Subcategory: Camera Accessories
$2,995.00
FREE SHIPPING
B2B Pricing options available. Get Better Pricing.
Need Help?   let's talk about it.
The Blackmagic Camera Fiber Converter lets you extend and power your URSA Broadcast from up to 2 km away using industry standard SMPTE fiber cables. It also includes common live camera controls with multiple channels of talkback and standard television industry talkback headset connections. The Blackmagic Camera Fiber Converter features 1 Ultra HD camera feed, plus 3 HD return feeds in a compact IP video based design.
General Information
Manufacturer
Blackmagic Design Pty. Ltd
Manufacturer Part Number
CINEURSANWFRCAM
Manufacturer Website Address
http://www.blackmagic-design.com
Brand Name
Blackmagic Design
Product Name
Camera Fiber Converter
Product Type
Camera Fiber Converter
Interfaces/Ports
USB
Yes
Physical Characteristics
Height
7.5"
Width
5.4"
Depth
5.5"
Weight (Approximate)
4.90 lb
Miscellaneous
Additional Information
Optical Fiber Input
1x SMPTE Hybrid Fiber Optic with SMPTE 304 connector (Male).

SDI Video Input
1x 12G SDI for Camera feed.

SDI Video Output
1x 3G SDI for Camera return feed, 3x 3G SDI for Return SDI Outputs.

Talkback Audio
2x 5-pin XLR for headset with three way audio mixer per output, 1x Tracker output.

Analog Audio
2x 3-pin XLR Inputs for AES, Line or Mic input. Phantom Power available.

Computer Interface
1x USB-C connector.

HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60

Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p60

SDI Compliance
SMPTE 259M, SMPTE 292M, 296M, 372M, 424M Level B, 425M.

Audio Sampling
Television standard sample rate of 48Khz, 24 bit A/D conversion.

Video Sampling
4:2:2

Color Precision
10-bit

Color Space
REC 709, REC 2020.

Multiple Rate Support
SDI switches between HD, 3G-SDI, 6G-SDI and 12G-SDI.
