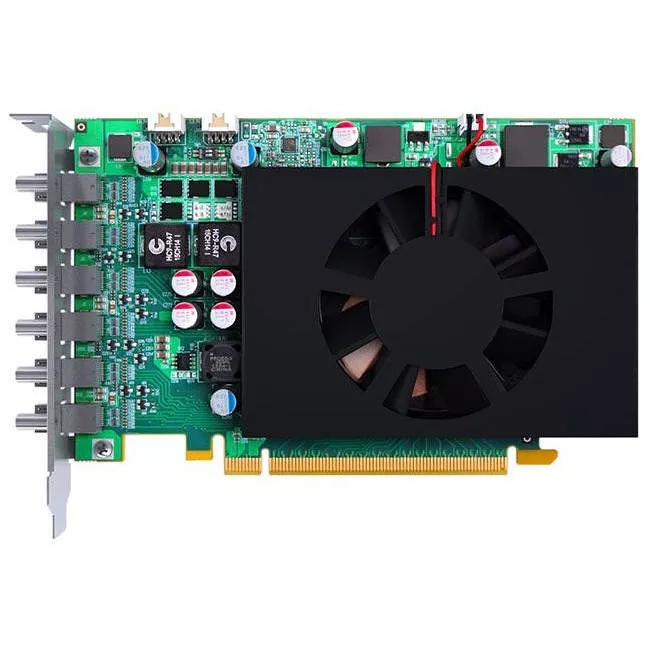

Matrox C680-E2GBF -Series C680 Graphic Card - 2 GB GDDR5 - PCI Expres 3.0 x16 - Single Slot

MPN # C680-E2GBF UPC # 630396246425
Condition: New
Product highlights:
  • Standard Memory: 2 GB
  • Maximum Resolution: 4096 x 2160
  • Number of Monitors Supported: 6
  • Cooler Type: Fan Cooler
$369.99

Need Help?

let's talk about it.

Performance Meets Flexibility
The Matrox C680 is a single-slot, PCIe® x16 graphics card that drives up to six displays or projectors at resolutions up to 4096 x 2160 per output. The versatile, six-monitor video card can power the latest Ultra HD/4K panels as well as enable 12-monitor configurations when combined with a second Matrox C680 board. The board-to-board framelock feature ensures synchronization of all displays to reduce tearing on digital signage and video walls. With its high reliability, outstanding performance, and advanced multi-monitor capabilities, Matrox C680 delivers the best display density for demanding commercial and critical applications including enterprise, industrial, pro A/V, digital signage, security, control rooms and more.

General Information
Manufacturer
Matrox
Manufacturer Part Number
C680-E2GBF
Manufacturer Website Address
http://www.matrox.com
Brand Name
Matrox
Product Line
C-Series
Product Model
C680
Product Name
C680 Graphics Card
Product Type
Graphic Card
Technical Information
Maximum Resolution
4096 x 2160
API Supported
  • OpenGL 4.4
  • DirectX 11.2
  • OpenCL 1.2
  • Number of Monitors Supported
    6
    HDCP Supported
    Yes
    Frame Lock/Genlock
    Yes
    Processor & Chipset
    Chipset Manufacturer
    AMD
    Memory
    Standard Memory
    2 GB
    Memory Technology
    GDDR5
    Interfaces/Ports
    Mini DisplayPort
    Yes
    Number of Mini DisplayPort Outputs
    6
    Software
    Software Included
    PowerDesk Software (Available for download from Matrox website)
    Physical Characteristics
    Slot Space Required
    Single
    Form Factor
    Plug-in Card
    Card Length
    Half-length
    Card Height
    Full-height
    Cooler Type
    Fan Cooler
    Height
    4.1"
    Length
    6.6"
    Miscellaneous
    Package Contents
    • C680 Graphics Card
    • Quick-start Guide
    • Display Drivers
    System Requirements
    • Single available PCIe x16 lane
    • 256MB of system memory
    • Internet access for software installation
    Compatible operating systems:
    • Windows® 8.1 32-bit
    • Windows 8.1 64-bit
    • Windows 7 32-bit
    • Windows 7 64-bit
    • Windows Embedded Standard 7 32-bit
    • Windows Embedded Standard 7 64-bit
    • Windows Server® 2012 R2 64-bit
    • Windows Server 2008 R2 64-bit
    • Linux®
    Certifications & Standards
    • EMC Certification: Class B
    • DisplayPort 1.2 Multi-Stream Transport (MST)
    Platform Supported
  • PC
  • Linux
  • Environmentally Friendly
    Yes
    Environmental Certification
  • RoHS
  • WEEE
  • Warranty
    Limited Warranty
    3 Year
