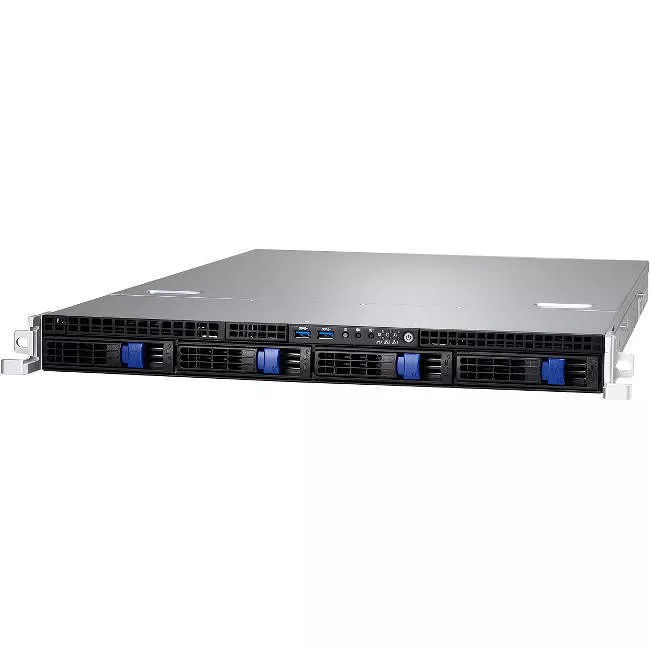

TYAN B5542G24BV4HR GT24BB5542 1U Rackmount Barebone Intel C232 Chipset - LGA-1151

MPN: B5542G24BV4HR
Availability: In Stock

Product Highlights:

  • Number of Processors Supported: 1
  • Processor Socket: Socket H4 LGA-1151
  • Maximum Memory: 64 GB
  • Memory Standard: DDR4-2400/PC4-19200
$792.00
Please log in to add an item to your wishlist.
In Cart: 0
B2B pricing options available.

SabrePC B2B Account Services

Save instantly and shop with assurance knowing that you have a dedicated account team a phone call or email away to help answer any of your questions with a B2B account.

  • Business-Only Pricing
  • Personalized Quotes
  • Fast Delivery
  • Products and Support
Need Help? Let's talk about it.
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
B5542G24BV4HR
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Model
GT24BB5542
Product Name
GT24BB5542 Barebone System
Packaged Quantity
1
Product Type
Barebone System
Processor & Chipset
Number of Processors Supported
1
Processor Socket
Socket H4 LGA-1151
Processor Supported
Xeon
64-bit Processing
Yes
Chipset Manufacturer
Intel
Chipset Model
C232
Memory
Maximum Memory
64 GB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2400/PC4-19200
Number of Total Memory Slots
4
Controllers
Controller Type
  • Serial ATA/600
  • 12Gb/s SAS
  • RAID Supported
    Yes
    Display & Graphics
    Graphics Controller Manufacturer
    ASPEED
    Graphics Controller Model
    AST2400
    Graphics Memory Capacity
    16 MB
    Network & Communication
    Ethernet Technology
    Gigabit Ethernet
    I/O Expansions
    Number of Total Expansion Bays
    4
    Number of Internal 2.5" Bays
    4
    Number of Total Expansion Slots
    1
    Number of PCI Express x16 Slots
    1
    Interfaces/Ports
    Total Number of USB Ports
    7
    Number of USB 3.0 Ports
    6
    Number of SATA Interfaces
    4
    Software
    Operating System Supported
  • Windows 10 x64
  • Windows Server 2012 R2 Datacenter x64
  • Red Hat Enterprise Linux 6.7 x64
  • Red Hat Enterprise Linux 7.1 x64
  • Red Hat Enterprise Linux 7.2 x64
  • SuSE Linux Enterprise Server 12 x64
  • CentOS 7.0 x64
  • Windows 8.1 Pro
  • Power Description
    Input Voltage
  • 120 V AC
  • 230 V AC
  • Number of Power Supplies Installed
    2
    Maximum Power Supply Wattage
    450 W
    Physical Characteristics
    Form Factor
    Rack-mountable
    Rack Height
    1U
    Height
    1.7"
    Width
    17.2"
    Depth
    25.4"
    Miscellaneous
    Package Contents
    • GT24BB5542 Barebone System
    • 1 x Quick Installation Guide
    • 1 x TYAN installation CD
    Environmentally Friendly
    Yes
    Environmental Certification
    RoHS-6
    Warranty
    Limited Warranty
    3 Year
