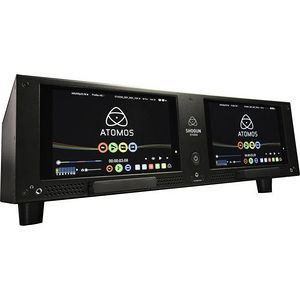

Atomos ATOMSHSTU01 Shogun Studio 4K Monitor and Recorder 6G-SDI, HDMI

MPN # ATOMSHSTU01 UPC # 750408409737
Availability: In Stock
Condition: New
Product highlights:
  • Maximum Resolution: 1920 x 1200
  • Brightness: 400 Nit
  • Contrast Ratio: 800:1
  • Product Type: LCD Touchscreen Monitor
$2,495.00

Need Help?

let's talk about it.

RECORDING FEATURES

Use each channel independently to record edit friendly 10-bit 4:2:2 ProRes/DNxHR or operate the dual channels together for more advanced recording functionality

CONTINUOUS RECORDING

Automatically switches channels when the disk is full without any down time in recording

MULTI CODEC

Flexible dual codec recording to capture a high bit rate master/lower bit rate proxy or ProRes/DNxHR versions of the same footage

MULTI RESOLUTION

Multi resolution option for capturing a 4K Master/HD deliverable or even dailies with burnt in LUTs

CONTROL FEATURES

Direct touchscreen access combined with advanced remote control functionality

TOUCHSCREEN WITH TRANSPORT CONTROLS

Operate each channel via the independent touch screens to adjust record, monitor, playback and edit functions.

LTC / GENLOCK

LTC input for multi cam scenarios during recording and Genlock available for play back

RS422 / AMP OVER ETHERNET

Independent RS422 machine control inputs for each channel and ethernet connection for control via AMP protocol

EXPOSURE & FOCUS PEAKING

The calibrated dual 7" monitors provide accurate REC.709 viewing of content as well as a host of tools for image analysis.

Wave Form Monitoring on both channels using Luma Parade, RGB parade & Vector Scope with Vector Zoom

Focus peaking in 3 modes along with 1:1 and 2:1 zoom to punch in for critical focus

MONITOR HDR WITH YOUR LOG CAMERA

Camera Log (S-Log2, S-Log3, C-Log, V-Log etc) delivers maximum sensor detail in your recordings, but on monitors it looks washed out & makes judging exposure difficult. AtomHDR brings post production HDR monitoring to the field, displaying high brightness range Log footage with the brightness and vibrancy as the eye sees it on our SuperAtom IPS 8-bit 400nit calibrated monitor.

This provides a rack mount solution for HDR, letting you use your current HDR Log camera to future proof your production. We are proud to deliver a free update to HDR on the existing range. We can offer this because we are in complete control of every aspect of the product - panel, processing and display.

General Information
Manufacturer
Atomos
Manufacturer Part Number
ATOMSHSTU01
Manufacturer Website Address
http://www.atomos.com
Brand Name
Atomos
Product Line
Shogun Studio
Product Name
Shogun Studio Touchscreen LCD Monitor
Packaged Quantity
1
Product Type
LCD Touchscreen Monitor
Technical Information
Viewable Screen Size
7.1"
Screen Mode
WUXGA
Aspect Ratio
16:9
Mount Type
Rack-mountable
Video
Maximum Resolution
1920 x 1200
Contrast Ratio
800:1
Brightness
400 Nit
Touchscreen Information
Touchscreen Type
Capacitive
Interfaces/Ports
HDMI
Yes
Number of HDMI Inputs
1
Power Description
Operating Power Consumption
60 W
Physical Characteristics
Height
6"
Width
17.6"
Depth
9.9"
Weight (Approximate)
11.02 lb
Miscellaneous
Package Contents
  • Shogun Studio Touchscreen LCD Monitor
  • 2 x Rack ears with screws
  • 5 x Master II Caddies
  • 4 x Rubber feet
  • 2 x Large Rubber feet
  • 2 x IEC power cable
  • 2 x HDMI cables
  • 1 x Screen cleaning cloth
  • 1 x Quick Start Guide
Warranty
Limited Warranty
3 Year
