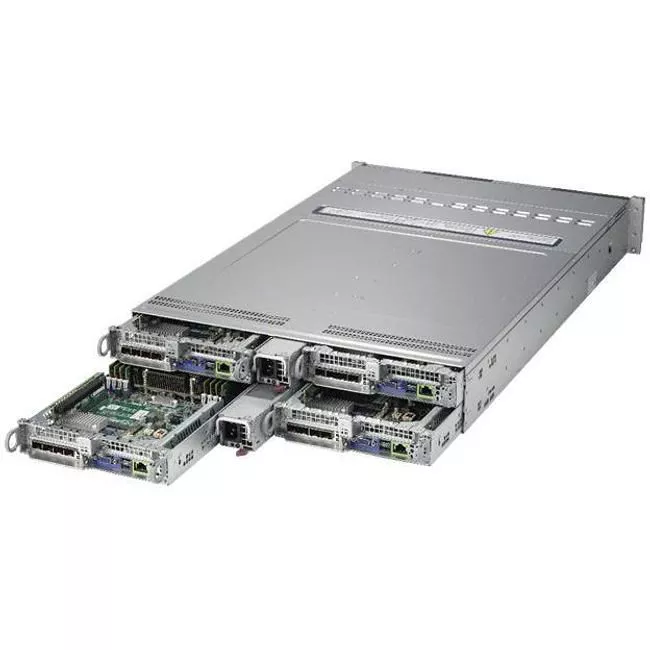

The Supermicro AS-2124BT-HTR is based on the AMD EPYC 7002/7003 Series processor. It features four nodes, each with six 2.5" hot-swap drives and one SIOM networking card.

Specifications

Processor & Chipset (per node)

Number of Nodes

Number of Processors Supported

Processor Socket

Socket SP3

Processor Type

EPYC

Processor Supported

7002-Series
7003-Series
7003X-Series

Thermal Design Power (TDP)

N/A

Memory (Per node)

Maximum Memory

4 TB

Memory Technology

DDR4 SDRAM

Memory Standard

DDR4-3200/PC4-25600

Number of Total Memory Slots

Controllers (Per node)

Controller Type

SATA3

Display & Graphics (Per node)

Graphics Controller Manufacturer

ASPEED

Graphics Controller Model

AST2500

Network & Communication (Per node)

SIOM Options

1000BASE-T
10G SFP+
10GBASE-T
25 GbE
IB FDR

I/O Expansions (Per node)

PCI Express

2x PCI-E 4.0 x16 slots (Low Profile)
1 SIOM card support
1x M.2 PCI-E 3.0 x4 slot (2280, 22110)

Drive Bays (Per node)

Hot-swap

6x 2.5" Hot-Swap

M.2

1x M.2 SATA/PCI-E

Interfaces/Ports

Total Number of USB Ports

Number of USB 3.1 Ports

2 (rear)

Number of SATA Interfaces

Optional SIOM cards

2x RJ45 1000BASE-T Ports
4x RJ45 1000BASE-T Ports
2x SFP+ 10G Ports
4x SFP+ 10G Ports
2x RJ45 10GBASE-T Ports
4x RJ45 10GBASE-T Ports
2x SFP28 and 2x RJ45 25GbE Ports
2x QSFP and 2x RJ45 IB FDR Ports
1x QSFP and 2x RJ45 IB FDR Ports

LAN

1x RJ45 Dedicated IPMI Port

Onboard Video

1x VGA Connector

DOM

1x Disk on Module

Power Description

Number of Power Supplies

Maximum Power Supply Wattage

2200 W

Certification

80 Plus Titanium

Physical Characteristics

Color

Black

Form Factor

Rack-mountable

Rack Height

Height

3.47"

Width

17.25"

Depth

28.5"
