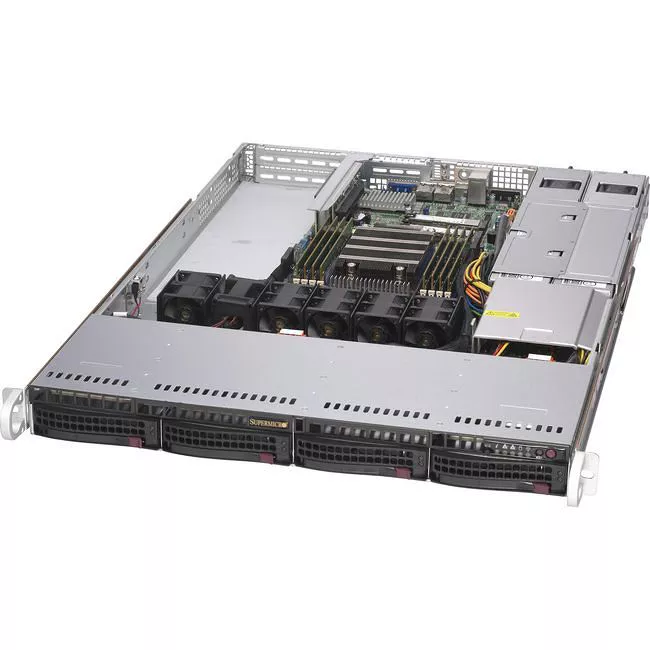

Supermicro AS-1014S-WTRT 1U Server

Please log in to add an item to your wishlist. MPN: AS-1014S-WTRT

Supermicro AS-1014S-WTRT 1U Server

Highlights

Overview

Specifications

The Supermicro AS-1014S-WTRT is based on the AMD EPYC 7002/7003 Series processor. It features four 3.5" hot-swap drives and two 10GBASE-T ethernet ports.

Specifications

Processor & Chipset

Number of Processors Supported

Processor Socket

Socket SP3

Processor Type

EPYC

Processor Supported

7002-Series
7003-Series

Thermal Design Power (TDP)

240W

Memory

Maximum Memory

2 TB

Memory Technology

DDR4 SDRAM

Memory Standard

DDR4-3200/PC4-25600

Number of Total Memory Slots

Controllers

Controller Type

SATA3

Display & Graphics

Graphics Controller Manufacturer

ASPEED

Graphics Controller Model

AST2500 BMC

Network & Communication

Ethernet Technology

10GBASE-T

Number of Network (RJ-45) Ports

I/O Expansions

PCI Express

2x PCI-E 4.0 x16 slots (Full-Height, Half-Length)
1x PCI-E 4.0 x16 slot (Low-profile, Limited PCI-E 4.0 support)
1x M.2 PCI-E 4.0 x2 slot

Drive Bays

Hot-swap

4x 3.5" Hot-swap drive bays

Interfaces/Ports

Total Number of USB Ports

Number of USB 3.0 Ports

5 (4x rear, 1x Type A)

Number of SATA Interfaces

LAN

2x RJ45 10GBASE-T Ethernet LAN Ports
1x RJ45 Dedicated IPMI Port

Onboard Video

1x VGA Connector

DOM

2x Disk on Module ports

Power Description

Number of Power Supplies

Maximum Power Supply Wattage

500 W

Certification

80 Plus Platinum

Physical Characteristics

Color

Black

Form Factor

Rack-mountable

Rack Height

Height

1.7"

Width

17.2"

Depth

23.5"
