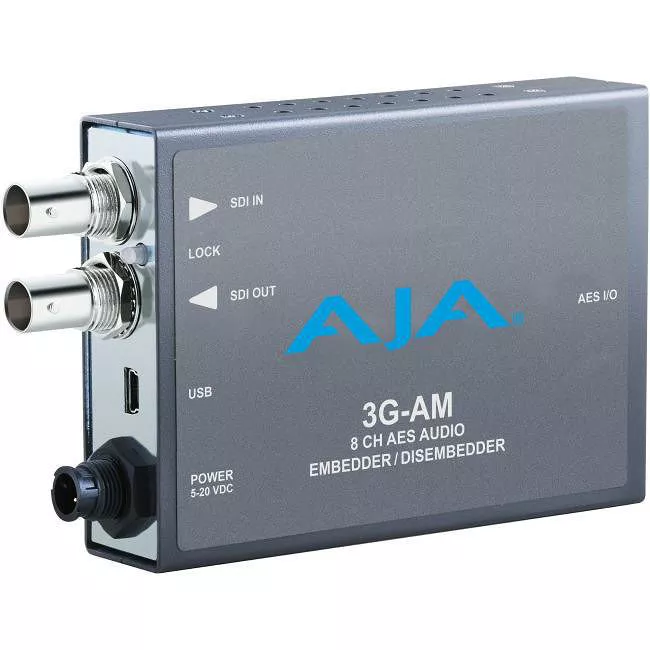

AJA 3G-AM-BNC 3G-SDI 8-Ch AES Embedder/Disembedder, bal. BNC, USB Mini-Config support

MPN # 3G-AM-BNC
Availability: In Stock
Condition: New
Product highlights:
  • Product Type: Signal Extractor
  • Maximum Resolution: 2048 x 1080
  • Platform Supported: PC | Mac
  • Condition: New
$795.00
FREE SHIPPING

Need Help?

let's talk about it.
The 3G-AM is an 8-Channel AES audio Embedder/Disembedder with support for 3G-SDI input and output up to 1080p 60. Audio disembedding is always functional, providing 4 AES outputs. Audio embedding is user selectable, on a channel pair basis, to either pass 3G-SDI input audio or to embed input AES audio from the breakout cable.

AES inputs are sample rate converted to a 48 KHz rate synchronous to the video input. The 3G-AM automatically detects and configures to the input video standard.

Features

  • 3G-SDI Embedder/Disembedder
  • 8-Channel AES I/O
  • Supplied breakout cables for balanced AES - XLR connectors
  • USB connectivity via AJA MiniConfig software
  • Dipswitch configuration
  • 5-20VDC Power

Choice of Supplied Breakout Cable

Order 3GAM with either a XLR or BNC breakout cable.

Specify 3G-AM-XLR for XLR connectivity or 3G-AM-BNC if you prefer BNC connectors for AES audio needs.

USB and Mini-Config Support

AJA's free Mini-Config software can be used with any USB-enabled AJA Mini-Converter and provides an easy-to-use graphical interface with detailed information about the current input and output formats. Control all the parameters of any supported AJA Mini-Converter as well as loading firmware updates from AJA that add new features and functionality.

General Information
Manufacturer
AJA Video System
Manufacturer Part Number
3G-AM-BNC
Manufacturer Website Address
http://www.aja.com
Brand Name
AJA VIDEO
Product Model
3G-AM
Product Name
3G-AM 3G-SDI 8-Channel AES Embedder/Disembedder
Product Type
Signal Extractor
Technical Information
Functions
  • Audio Embedding
  • Audio De-embedding
  • Maximum Resolution
    2048 x 1080
    Platform Supported
  • PC
  • Mac
  • Interfaces/Ports
    USB
    Yes
    SDI
    Yes
    Number of SDI Inputs
    1
    Number of SDI Outputs
    1
    Physical Characteristics
    Height
    1"
    Width
    5.8"
    Depth
    3.1"
    Miscellaneous
    Package Contents
    • 3G-AM 3G-SDI 8-Channel AES Embedder/Disembedder
    • Power Supply
    • BNC Breakout Cable
    Warranty
    Limited Warranty
    5 Year
