Azden 310UDR UHF Single-Channel Diversity Receiver
MPN # 310UDR
UPC # 095528310007
Availability: In Stock
Condition: New
Product highlights:
  • Product Type: Wireless Microphone System Receiver
  • Condition: New
  • Category: Electronics
  • Subcategory: Home Theater & Audio
$400.00
B2B Pricing options available. Get Better Pricing.
Need Help?   let's talk about it.

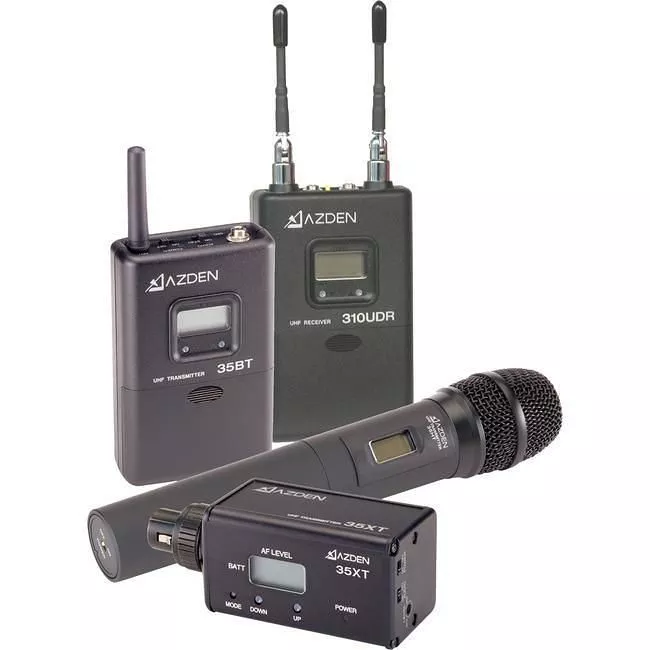

The 310UDR is a high quality, diversity UHF camera-mount wireless receiver that features 188 user-selectable frequencies displayed on an LCD screen to assure you of always finding a "free" channel. Also included are main and headphone monitor outputs, and a removable shoe-mount adapter. The 310UDR operates on standard AA alkaline batteries (not included). The 310UDR works with all 300 series transmitters, including the 35BT Belt-Pack transmitter, the 35HT Handheld microphone/transmitter and the 35XT Plug-In transmitter.
General Information
Manufacturer
Azden Corporation
Manufacturer Part Number
310UDR
Manufacturer Website Address
http://www.azdencorp.com
Brand Name
Azden
Product Series
310
Product Model
310UDR
Product Name
310UDR UHF Diversity Wireless Single Channel Receiver
Product Type
Wireless Microphone System Receiver
Technical Information
Minimum Operating Frequency
566.13 MHz
Maximum Operating Frequency
589.88 MHz
Minimum Frequency Response
50 Hz
Maximum Frequency Response
15 kHz
Signal to Noise Ratio (SNR)
84 dB
Interfaces/Ports
XLR
Yes
Mini-phone
Yes
Battery Information
Number of Batteries Supported
2
Battery Size Supported
AA
Battery Chemistry
  • Nickel Metal Hydride (NiMH)
  • Alkaline
  • Battery Run Time
    6 Hour
    Power Description
    Input Voltage
  • 2.4 V DC
  • 3 V DC
  • Physical Characteristics
    Color
    Black - Receiver
    Height
    3.9"
    Width
    2.5"
    Depth
    1.1"
    Weight (Approximate)
    6.70 oz - with Battery
    Miscellaneous
    Package Contents
    • 310UDR UHF Diversity Wireless Single Channel Receiver
    • Shoe Mount
    • Mounting Strips
    • 3.5mm Mini-jack Output Cable
    • Manual
    Additional Information
    • 188 Selectable UHF Frequencies
    • New, Pivoting diversity High-Gain Antenna
    • Headphone Output on Receiver
    • Attached/Removable Shoe-Mount
    • Digital LCD Display w/ Multifunction Readout
    • Output Impedance: 1k Ohms
    • No of Channel : 188
    • Rechargeable Battery
    Compatibility
    • 35BT Belt-Pack Transmitter
    • 35HT Handheld Microphone/Transmitter
    • 35XT Plug-In Transmitter
    Certifications & Standards
    CE
    Warranty
    Limited Warranty
    2 Year
