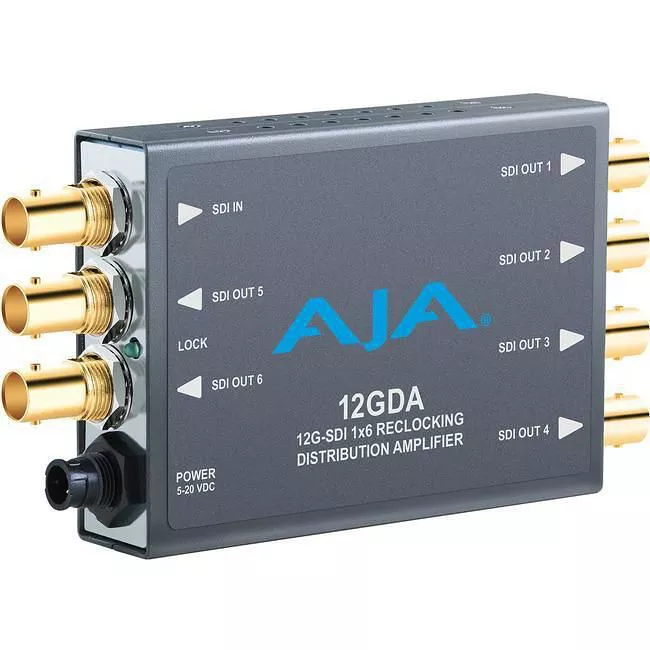

12GDA is a miniature 1x6 12G-SDI re-clocking distribution amplifier that allows facilities to save on cable runs and install times. With support for 12G-SDI for 4K/UltraHD single link workflows, the format-agnostic device features six separately buffered SDI outputs identical to the recovered input. It also offers automatic input detection, re-clocking and cable equalization, as well as a throw down package and LED signal detection indicator.

12G-SDI from Camera to Fiber, Edit and More

Explore how AJA's latest 12G-SDI solutions can simplify production and post workflows, providing ample bandwidth to handle high resolution, high frame rate and deep color content over a single cable.

Learn more about our FiDO 12G-SDI/optical fiber Mini-Converters,12GDA distribution amplifier, 12GM Muxer/DeMuxer, FS-HDR converter/frame synchronizer and Io 4K Plus Thunderbolt™ 3-equipped audio and video I/O device with 12G-SDI support.

Features

• Compact 12G-SDI distribution
• Six separately buffered outputs
• Miniature size
• 12G cable equalization (1694 coax)
• 12 Gbps, 70m
• 6 Gbps, 120m
• 3 Gbps, 190m
• 1.5 Gbps, 195m
• 270 Mbps, 405m
• 12G/6G/3G/HD/SD-SDI input, auto sensing
• Passes all ancillary data
• DWP-U-R1 power supply included
• Five year warranty
