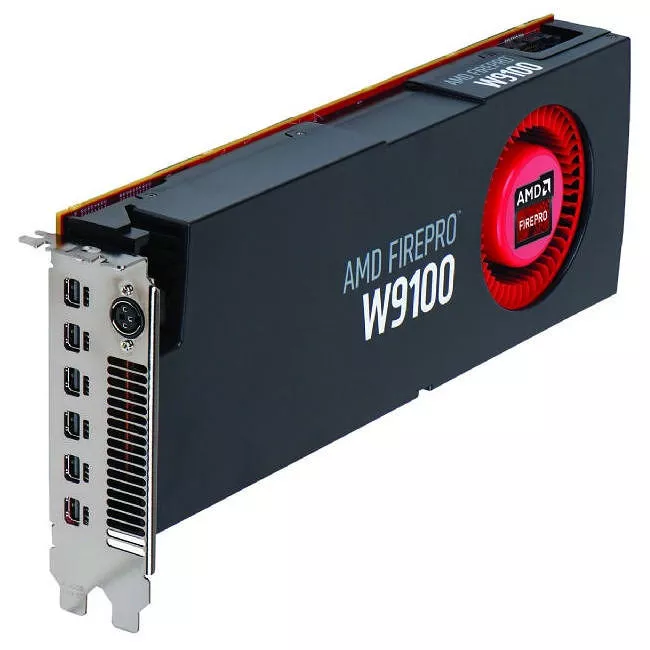

AMD 100-505725 FirePro W9100 Graphic Card - 930 MHz Core - 16 GB GDDR5 - PCI-E 3.0 x16 - Dual Slot

MPN # 100-505725 UPC # 012300365413
Condition: New
Product highlights:
  • Standard Memory: 16 GB
  • Maximum Resolution: 4096 x 2160
  • Host Interface: PCI Express 3.0 x16
  • GPU Clock: 930 MHz
Contact sales for pricing

Need Help?

let's talk about it.

AMD FirePro™ W9100 workstation graphics cards are designed for the next generation of 4K workstations. With industry leading graphics, compute power and ultra-high resolution multi-display capabilities, Video, Design, and Engineering professionals can work at a whole new level of detail, speed, responsiveness, and creativity.

16GB GDDR5 memory

512-bit memory interface

320 GB/s memory bandwidth

DirectGMA support

Six Mini DisplayPort 1.2 outputs

AMD Eyefinity multi-display technology

4K display resolution (up to 4096x2160)

2,816 stream processors (44 CUs)

5.24 TFLOPS peak single precision

2.62 TFLOPS peak double precision

General Information

Manufacturer: Advanced Micro Devices, Inc

Manufacturer Part Number: 100-505725

Manufacturer Website Address: http://www.amd.com

Brand Name: AMD

Product Name: FirePro W9100 Graphic Card

Marketing Information:

AMD FirePro™ W9100 workstation graphics cards are designed for the next generation of 4K workstations. With industry leading graphics, compute power and ultra-high resolution multi-display capabilities, Video, Design, and Engineering professionals can work at a whole new level of detail, speed, responsiveness, and creativity.

16GB GDDR5 memory

512-bit memory interface

320 GB/s memory bandwidth

DirectGMA support

Six Mini DisplayPort 1.2 outputs

AMD Eyefinity multi-display technology

4K display resolution (up to 4096x2160)

2,816 stream processors (44 CUs)

5.24 TFLOPS peak single precision

2.62 TFLOPS peak double precision



Product Type: Graphic Card

Technical Information

Maximum Resolution: 4096 x 2160

Digital Signal: Yes

API Supported:
  • DirectX 11.1
  • OpenGL 4.3
  • OpenCL 1.2
  • Multi-GPU Technology: CrossFire Pro

    Shader Model: 5.0

    Number of Monitors Supported: 6

    Frame Lock/Genlock: Yes

    Features:
  • Eyefinity 2.0
  • Graphics Core Next (GCN)
  • GeometryBoost
  • PowerTune Technology
  • ZeroCore Power Technology
  • ECC
  • Discrete Digital Multi-Point Audio (DDMA)
  • Video Codec Engine (VCE)
  • AutoDetect Technology
  • Unified Driver Architecture (UDA)
  • Processor & Chipset

    Chipset Manufacturer: AMD

    Chipset Line: FirePro

    Chipset Model: W9100

    GPU Clock: 930 MHz

    Number of Stream Processors: 2816

    Memory

    Standard Memory: 16 GB

    Memory Technology: GDDR5

    Bus Width: 512 bit

    Interfaces/Ports

    Host Interface: PCI Express 3.0 x16

    Mini DisplayPort: Yes

    Number of Mini DisplayPort Outputs: 6

    Physical Characteristics

    Slot Space Required: Dual

    Form Factor: Plug-in Card

    Card Length: Full-length

    Card Height: Full-height

    Cooler Type: Fan Cooler

    Length: 11"

    Miscellaneous

    System Requirements:
    • 750 W Power Supply (Suggestion)
    • 1 x Available PCI-Express X16 Slot
    • 2048 MB System Memory
    • 1 x 8-pin AUX Power Connector
    • 1 x 6-pin AUX Power Connector
    • DVD-ROM Drive (or Internet Access) for Software Installation
    Operating System(s):

    • Windows 7
    • Windows 8
    • Windows 8.1
    • Linux


    Certifications & Standards:
    • FCC
    • CE
    • C-Tick
    • BSMI
    • KCC
    • UL
    • VCCI


    Platform Supported: PC

    Environmentally Friendly: Yes

    Environmental Certification:
  • WEEE
  • RoHS
  • Warranty

    Limited Warranty: 3 Year
