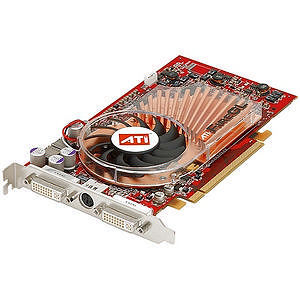

AMD 100-505087 FireGL V5100 Graphics Accelerator
MPN # 100-505087 UPC # 724627068631
Condition: New
Product highlights:
  • Standard Memory: 128 MB
  • Number of Monitors Supported: 2
  • Product Type: Graphic Card
  • Condition: New
Contact sales for pricing
Need Help?   let's talk about it.

The FireGL V5100 of workstation graphics accelerator is designed specifically for the new, high-bandwidth PCI Express bus, and is architected to deliver unprecedented speed and image quality for real-time visualization. True cinematic quality rendering of complex geometry is now available for compelling animation, visual effects, mechanical design and leading edge business communication.

General Information
Manufacturer
Advanced Micro Devices, Inc
Manufacturer Part Number
100-505087
Manufacturer Website Address
http://www.amd.com
Brand Name
AMD
Product Name
FireGL V5100 Graphics Accelerator
Packaged Quantity
5
Package Type
Retail
Product Type
Graphic Card
Technical Information
RAMDAC Speed
400 MHz
Analog Signal
Yes
Digital Signal
Yes
API Supported
OpenGL
Number of Monitors Supported
2
Processor & Chipset
Chipset Line
FireGL
Chipset Model
V5100
Memory
Standard Memory
128 MB
Memory Technology
DDR SDRAM
Bus Width
256 bit
Interfaces/Ports
DVI
Yes
Total Number of DVI Outputs
2
Miscellaneous
Additional Information
  • Integrated 165 MHz TMDS transmitter (DVI & HDCP compliant)
  • Up to 256-bit high bandwidth memory architecture
  • 2, 4 or 6 parallel geometry engines
  • 4, 8 or 16 parallel pixel pipelines
  • 128-bit full floating point precision
  • 24-bits per RGBA component displays beyond 16.7M colors

Hardware acceleration of the following:

  • Anti-aliased points and lines or full scene anti-aliasing (2X, 4X, 6X)
  • 3D lines and triangles
  • Stipple points
  • Two-sided lighting
  • Up to 8 light sources
  • Directional and local lighting
  • OpenGL overlay planes
  • Occlusion culling
  • 6 user defined clip planes
  • OpenGL polymode functions
  • 32-bit (24+8-bit stencil) Z Buffer
  • Fast Z and color clears
  • Full DX9 vertex shader support with 4 vertex units
  • Quad-buffer stereo support

SMARTSHADER Technology:

  • Programmable pixel and vertex shaders
  • 16 textures per pass
  • Pixel shaders up to 160 instructions with 32-bit floating point precision for each RGBA component
  • Multiple render target support
  • Shadow volume rendering acceleration
  • High precision 10-bit per channel frame buffer support

SMOOTHVISION Technology:

  • 2X/4X/6X anti-aliasing modes
  • High performance adaptive algorithm with programmable sample patterns
  • 2X/4X/8X/16X anisotropic filtering modes
  • Adaptive algorithm with bi-linear (performance) and tri-linear (quality) options

HYPER Z Technology:

  • 3-level Hierarchical Z-Buffer with early Z test
  • Lossless Z-Buffer compression (up to 24:1)
  • Fast Z-Buffer Clear
System Requirements
  • Intel Pentium 4/Xeon, AMD Athlon/Opteron or compatible CPU
  • PCI Express bus
  • 128MB of system memory (256MB or more recommended)
  • Installation software requires CD-ROM drive
  • 300 watt or greater power supply (recommended)
Compatibility

Operating system support:

  • Windows XP
  • Windows XP64
  • Windows 2000
  • Linux 32
  • Linux 64
Platform Supported
PC
Warranty
Limited Warranty
3 Year
