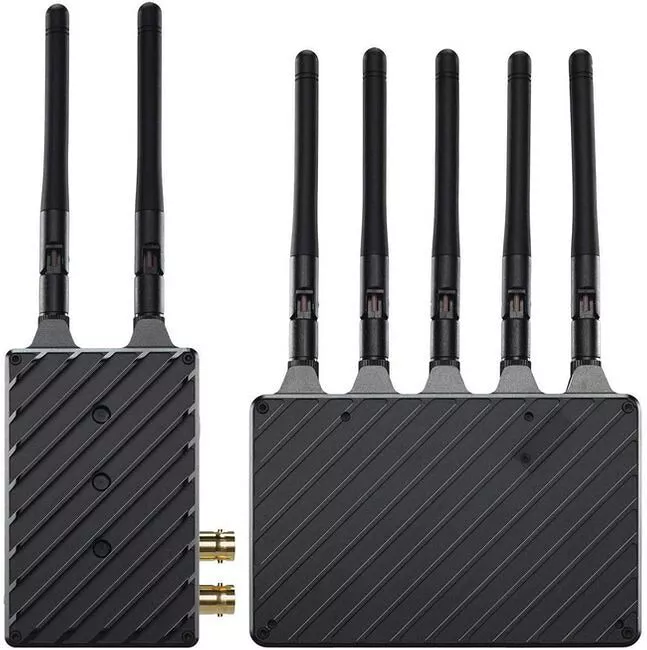

The Bolt 4K LT 750 4K TX/RX is a real time wireless video transmission system that supports video signals up to 4Kp30 via HDMI at a line-of-sight distance of up to 750ft (228m) with no image delay. Key features include increased range, faster reconnection times, easier setup with Bluetooth App for iOS or Android, and more stable connectivity. These devices are cross-compatible with the entire Bolt 4K Family. This set includes both the Bolt 4K LT TX 750 and Bolt 4K LT RX 750.

Zero-Delay 4K Wireless Video
Transmit and receive images up to 4Kp30 via HDMI at a line-of-sight distance of up to 750ft (228m) with no image delay (>0.001sec).

Transmitter:
Input: 1x HDMI 2.0 (up to 4Kp30), 1x 3G-SDI (up to 1080p60)
Output: 1x 3G-SDI (up to 1080p60)

Receiver:
Output: 1x HDMI 2.0 (up to 4Kp30), 2x 3G-SDI (up to 1080p60)

True HDR
Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut. Send and receive Log-enabled camera signals with wide dynamic range in order to monitor and achieve balanced highlight and lowlight regions with accurate color reproduction.

Improved Wireless Performance
Reliable signal transmission and reception over 13x 40MHz frequencies, with upgraded hardware and less image break-up than previous Bolt generations. Faster reconnection times, automatic signal quality switching, and a more robust frequency hopping algorithm. An additional 5GHz radio frequency link is available for high-traffic locations with excessive interference from other wireless devices.

Send Signal up to 6 Receivers
Link up to 6 RX receivers to any 1 TX transmitter to enable multiple points of viewing.

Lightweight Body with Versatile Mounting
TX Mounting: M3 / ¼-20
RX Mounting: M3 / ¼-20 / ?x16

Universal Cross-Compatibility between all Bolt 4K Devices
Send and receive signals between any Bolt 4K series of devices for expanding workflow requirements.

Camera Metadata
Transmit metadata, timecode, and start/stop flags from most camera manufacturers.

Bolt App for Android and Apple iOS
Remotely pair any TX/RX devices, manually designate specific 5GHz channels, and monitor interference with the 5GHz Spectrum Analyzer and Wireless Health analysis tools.
