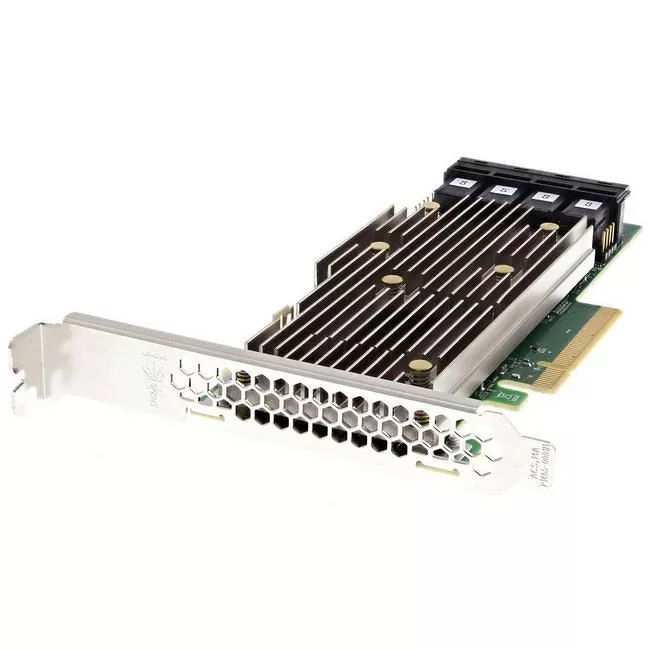

Broadcom 05-50011-00 16 Internal Port 12 Gb/s SAS Controller - SAS 9460-16I SGL
MPN # 05-50011-00
Condition: New
Product highlights:
  • Product Type: SAS Controller
  • Host Interface: PCI Express 3.1 x8
  • Platform Supported: PC | Linux
  • RAID Levels: 0 | 1 | 5 | 6 | 10 | 50 | 60 | JBOD
Need Help?   let's talk about it.

Data center, cloud and high-performance computing environments not only require large amounts of storage capacity, they also must provide the data protection, flexibility and performance today's applications and end users demand. The MegaRAID 9460-16i Tri-Mode Storage Adapter is a 12Gb/s SAS/SATA/PCIe (NVMe) controller card that addresses these needs by delivering proven performance and RAID data protection for a range of high-end server storage applications.

Broadcom's Tri-Mode SerDes Technology enables the operation of NVMe, SAS or SATA devices in a single drive bay, allowing for endless design flexibility.

  • Connect up to 240 SAS/SATA devices or 24 NVMe devices per controller
  • Fits into rack-mounted servers with low-profile form factor and side-mounted SAS connectors
  • Support critical, high-bandwidth applications with PCIe® 3.1 connectivity
  • Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60
  • Add more protection and peace of mind with CacheVault® flash cache protection
General Information
Manufacturer
Broadcom Inc
Manufacturer Part Number
05-50011-00
Manufacturer Website Address
http://www.broadcom.com
Brand Name
Broadcom
Product Line
MegaRAID
Product Model
9460-16i
Product Name
MegaRAID 9460-16i
Packaged Quantity
1
Product Type
SAS Controller
Technical Information
Host Interface
PCI Express 3.1 x8
Controller Type
12Gb/s SAS
RAID Supported
Yes
RAID Levels
  • 0
  • 1
  • 5
  • 6
  • 10
  • 50
  • 60
  • JBOD
  • Memory
    Cache Memory
    4 GB
    Interfaces/Ports
    Total Number of SAS Ports
    16
    Number of SAS Ports (Internal)
    16
    SAS Connector Details
    4 SFF-8643
    Physical Characteristics
    Height
    2.7"
    Width
    6.1"
    Form Factor
    Plug-in Card
    Miscellaneous
    Package Contents
    • MegaRAID 9460-16i
    • QIG
    • LP Bracket
    Platform Supported
  • PC
  • Linux
  • Environmentally Friendly
    Yes
    Environmental Certification
  • RoHS
  • WEEE
  • Warranty
    Limited Warranty
    3 Year
