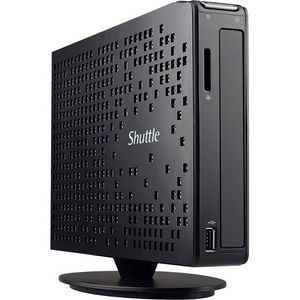

Shuttle XS35V5 XPC Desktop Computer - Intel Celeron N3050 1.60 GHz DDR3L SDRAM - Slim PC - Black

MPN: XS35V5

Product Highlights:

  • Processor Model: N3050
  • Standard Memory: No
  • Memory Technology: DDR3L SDRAM
  • Wireless LAN: Yes
Contact sales for pricing
Please log in to add an item to your wishlist.
Need Help? Let's talk about it.

Triple displays signage player with new Intel® Braswell platform

Shuttle launches the XS35V5 series slim PC powered by the latest Intel® Braswell platform technology with low-cost and low-power consumption design, it runs on a mere 40 watt adapter. This new series provide two different outlooks, including XS35V5 and XS35V5 Pro. With Intel® 8th generation HD Graphic Engine built into the CPU, the series is able to deliver Full HD video content and supports three independent-screen displays via DisplayPort, HDMI, and D-sub. With thickness of only 38.5mm, the XS35V5 series provides two USB 3.0, three USB 2.0 (one internal USB), and built-in Intel® Gigabit LAN as well as support 802.11b/g/n WiFi for great connectivity. The XS35V5 series is 24/7 certified, operable 0-40 °C environments, and VESA mountable with a fanless cooling design, ideal for digital signage, menu board, thin client, and more applications.

Intel® Braswell Platform Technology

The XS35V5 series supports Intel® Braswell platform technology, equipped with 14 nm Intel® Celeron® N3050 dual-core processor. Support 1.35V DDR3L low-voltage memory with a maximum capacity up to 8GB, able to reduce thermal energy production and overall energy consumption.

Fanless Design

The XS35V5 series uses a thermal module with cooled heat pipe and sink to transmit heat throughout the system quickly and evenly. The unique fanless design reduces the power consumption required by a fan as well as the cost of replacing fans. Use with solid-state disks and create an operational platform completely free of noise.

High-speed data transmission interface

With Intel® Braswell platform technology, the XS35V5 series features native SATA 6Gbps and USB 3.0 high-speed storage interfaces. A USB 3.0 port which supports up to 5 Gbps and provides 10 times greater data access speed than a USB 2.0 port.

Support wire and wireless high-speed networks

The XS35V5 series has built-in Intel® i211 Gigabit LAN and supports Wake On LAN to provide high-speed data transfer capability as well as a better compatibility for business network environment. With a built-in IEEE 802.11 b/g/n wireless network module*, providing high-speed wireless data transmission speed.

*Detail of WiFi support, please refer to the spec sheet.

VESA Mount-Ready

The slim XS35V5 series is VESA mount compliant and allows for versatile integration into hardware systems. This space saving capability is well-suited for digital signage applications with limited space.

Support Power on by RTC

By entering BIOS to set up the Power on by RTC, XS35V5 series allows user to set a time to boot up the system, which can also be turned on and off with the Windows task scheduler. This feature will benefit on the electricity and energy saving as well as the elimination the cost of on-site service

Two different outlooks

In addition to the original lightweight case design for XS35V5, the XS35V5 Pro features a new Aluminum side-cover design to meet different demands of customer need.

Support three independent displays

The XS35V5 series provides HDMI, DisplayPort, D-Sub output to support three independent displays. Use an adaptor to convert HDMI into DVI interface and DisplayPort into HDMI or DVI interface for diversified signal selection.

Full HD video content support

TheXS35V5 series is equipped with Intel® Celeron® N3050 dual-core processor and integrated Intel® 8th HD Graphic Engine, capable of playing Full HD video. Users can now send video and sound signal through a single wire with HDMI and DisplayPort connection.
