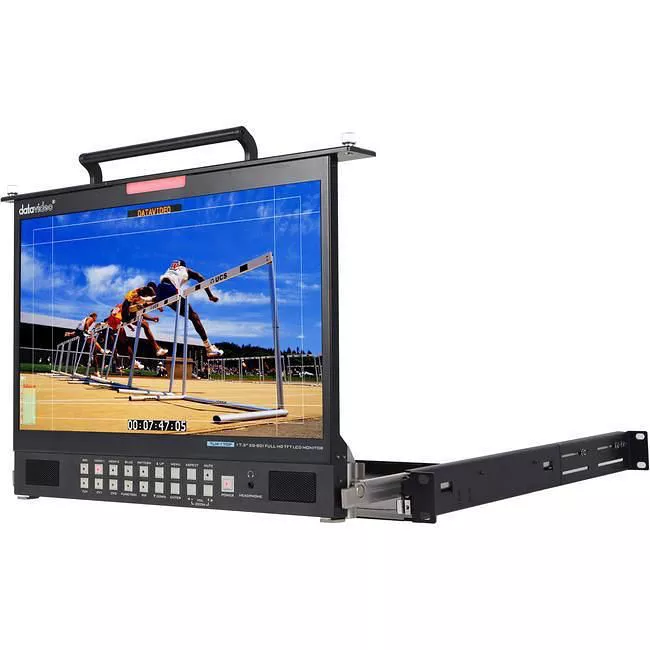

Datavideo TLM-170PM 17.3" HD/SD TFT LCD 1U Foldable Rackmount Monitor

MPN # TLM-170PM
Availability: In Stock
Condition: New
Product highlights:
  • Maximum Resolution: 1920 x 1080
  • Brightness: 400 Nit
  • Product Type: LCD Monitor
  • Condition: New
$2,399.00
FREE SHIPPING

Need Help?

let's talk about it.

The Datavideo TLM-170PM is a 17.3", 1U foldable rackmount video monitor that delivers superb FULL HD 1080P image quality from various inputs including 3G-SDI. The monitor is a professional grade panel designed to give excellent colour and video performance across a range of formats and standards as well as 24/7 operation.

The TLM-170PM Front Panel Buttons allow quick and easy selection of source input as well as PIP, Aspect ratio, Blue only, Pattern (Colour Bars), Menu and audio controls. Input HD/SD sources via the rear panel SDI, HDMI, Component (Y, Pb, Pr) and Composite connections as well as monitoring RCA phono or embedded SDI / HDMI audio.

The Datavideo TLM-170PM monitor has an on-screen display (OSD) menu which allows control and set up of brightness, contrast, saturation, hue, sharpness, colour temperature and picture in picture. It also has RJ-45 TCP/IP connector to allow remote set up of the monitor using a PC / Mac based web browser. The menus can also be used to display onscreen overlays for frame marker, 4:3 marker, 16:9 Marker, Cinema Zone Marker, Center Point, embedded SDI Timecode and Monitor Title.

The Datavideo TLM-170PM monitor can be operated from AC or 12V DC power making it flexible for use in a Studio, Gallery, Post Production Edit Suite or even in an OB van.

General Information
Manufacturer
Datavideo Corporation
Manufacturer Part Number
TLM-170PM
Manufacturer Website Address
http://www.datavideo.com
Brand Name
Datavideo
Product Model
TLM-170PM
Product Name
17.3" HD/SD TFT LCD Monitor
Packaged Quantity
1
Product Type
LCD Monitor
Technical Information
Number of Screens
1
Viewable Screen Size
17.3"
Screen Mode
Full HD
Aspect Ratio
16:9
Backlight Technology
LED
Video
Maximum Resolution
1920 x 1080
Native Contrast Ratio
600:1
Brightness
400 Nit
Interfaces/Ports
Network (RJ-45)
Yes
HDMI
Yes
USB
Yes
Number of HDMI Inputs
2
Power Description
Operating Power Consumption
30 W
Physical Characteristics
VESA Mount Compatible
Yes
VESA Mount Standard
100 x 100
Miscellaneous
Package Contents
  • 17.3" HD/SD TFT LCD Monitor
  • 1 x AD DC 12V with Power Cord
  • 8 x Screws M5 x 10mm
  • 1 x Thank You Card
