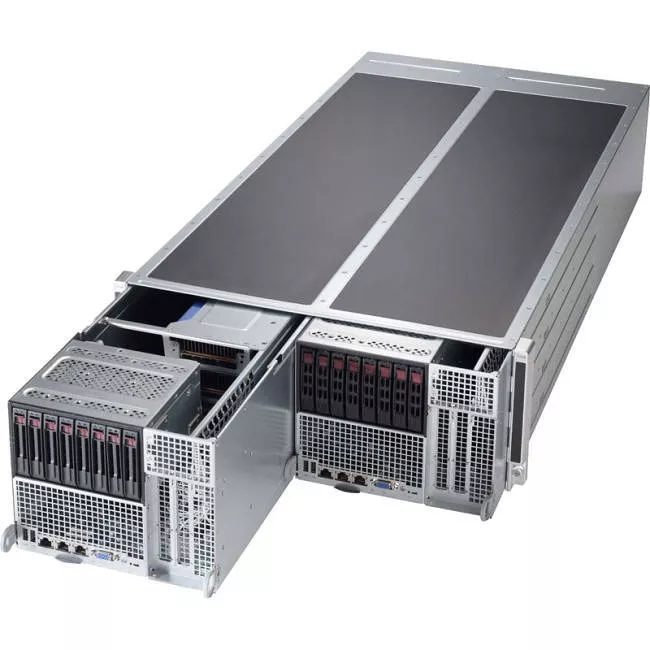

Supermicro SYS-F648G2-FC0PT+ 4U Rack Barebone - C612 Chipset - 2 Nodes - 2X Socket LGA 2011-v3

MPN: SYS-F648G2-FC0PT+
Highlights
  • Number of Processors Supported: 2
  • Processor Socket: Socket LGA 2011-v3
  • Maximum Memory: 1 TB
  • Memory Standard: DDR4-2133/PC4-17000
Contact sales for pricing
Please log in to add an item to your wishlist.
Need Help? Let's talk about it.
Please log in to add an item to your wishlist.
MPN: SYS-F648G2-FC0PT+
Contact sales for pricing

Supermicro SYS-F648G2-FC0PT+ 4U Rack Barebone - C612 Chipset - 2 Nodes - 2X Socket LGA 2011-v3

Highlights
  • Number of Processors Supported: 2
  • Processor Socket: Socket LGA 2011-v3
  • Maximum Memory: 1 TB
  • Memory Standard: DDR4-2133/PC4-17000
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-F648G2-FC0PT+
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
F648G2-FC0PT+
Product Name
SuperServer F648G2-FC0PT+ (Black)
Product Type
Barebone System
Processor & Chipset
Number of Nodes
2
Number of Processors Supported
2
Processor Socket
Socket LGA 2011-v3
Processor Supported
Xeon
64-bit Processing
Yes
Chipset Manufacturer
Intel
Chipset Model
C612
Memory
Maximum Memory
1 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2133/PC4-17000
Number of Total Memory Slots
16
Controllers
Controller Type
  • 12Gb/s SAS
  • Serial ATA/600
  • RAID Supported
    Yes
    Display & Graphics
    Graphics Controller Manufacturer
    ASPEED
    Graphics Controller Model
    AST2400
    Network & Communication
    Ethernet Technology
    Gigabit Ethernet
    I/O Expansions
    Number of Total Expansion Bays
    8
    Number of Internal 2.5" Bays
    8
    Number of Total Expansion Slots
    8
    Number of PCI Express x8 Slots
    2
    Number of PCI Express x16 Slots
    6
    Interfaces/Ports
    Total Number of USB Ports
    2
    Number of USB 3.0 Ports
    2
    Number of SATA Interfaces
    8
    Power Description
    Input Voltage
  • 120 V AC
  • 230 V AC
  • Number of Power Supplies Installed
    4
    Maximum Power Supply Wattage
    2000 W
    Physical Characteristics
    Color
    Black
    Form Factor
    Rack-mountable
    Rack Height
    4U
    Height
    7"
    Width
    17.6"
    Depth
    35"
    Weight (Approximate)
    105 lb
    Miscellaneous
    Package Contents
    • SuperServer F648G2-FC0PT+ (Black)
    • 4 x Super X10DRFF-CTG Motherboard
    • 1 x 4U Chassis
    • 2 x RoHS/REACH,PBF SAS3 BPN - 8x2.5" SSD/HDD hotswap drive bays for CSE-M28SAC chassis,overheat indicator,SGPIO support SES2 mngt,2 mini-SAS HD connector(SFF-8643),1 fan connector with fan fail detection
    • 4 x Backplane adapter card for 4UGPU,RoHS/REACH,PBF
    • 4 x BPN;SASADP;SAS827-H8;H8DTT;cable req
    • 2 x 8 pin male to two big 4 pin female power cable, 35cm and 22cm. 18AWG,HF,RoHS/REACH,PBF
    • 4 x Internal Mini-SAS HD to Mini-SAS HD 25cm,30AWG,HF,RoHS/REACH,PBF
    • 1 x CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
    • 1 x A Quick Reference Guide for SYS-F648G2-FC0(PT)+,HF,RoHS/REACH
    • 2 x RSC-R4UFF-A4E16B
    • 2 x RSC-R2UFF-X2E16B ,RoHS/REACH,PBF
    • 2 x RSC-R4UFF-A2E16A
    • 4 x 2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB
    • 4 x AC-DC 2000W, Titanium Level, Redundancy, 1U, PMBus 1.2, +12V/+5Vsb, 360x76x40mm,HF,RoHS/REACH
    Environmentally Friendly
    Yes
    Environmental Certification
    RoHS
    Warranty
    Limited Warranty
    1 Year
