FatTwin™ Server Solution - Best TCO with Highest Performance-per-Watt/per-Dollar

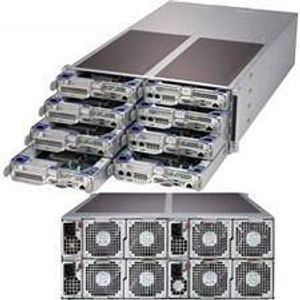

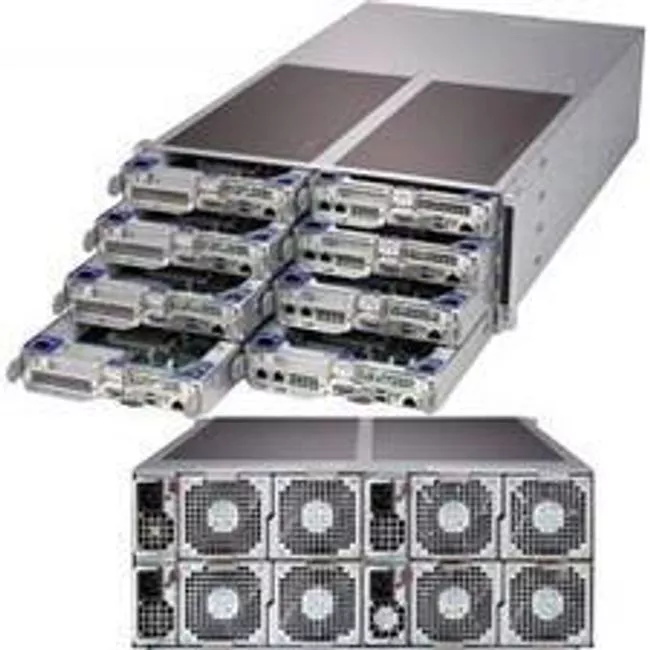

The Supermicro FatTwin™ is a high-density 8/4 hot-plug node SuperServer® system available with a variety of memory capacities, HDD technologies, M.2 SSD NVMe, PCIe alternatives, and networking capabilities. The FatTwin™ supports up to: 3TB DDR4-2933MHz memory in 12 DIMM slots, 1 PCI-E 3.0 x16 and 1 SIOM flexible nework card 8 ports of Broadcom SAS 3.0 (12Gbps) HBA or HW RAID, 10 ports of SATA 3.0 (6Gbps) with Intel® C621 controller, redundant Titanium Level (96%) Digital power supplies, integrated IPMI 2.0 with KVM over dedicated LAN, and Dual 2nd generation Intel® Xeon® Scalable processor families up to 26 cores and 165W TDP.
The Supermicro FatTwin represents a revolution in Green Computing and is highly efficient by design; this system supports critical applications while reducing Data Center TCO in order to help preserve the environment, and extends the compute and storage capabilities of Supermicro's existing Twin SuperServer systems to achieve increased performance and power efficiency. Due to its shared components, the FatTwin improves cost-effectiveness and reliability, while its modular architecture makes it flexible to configure and easy to maintain.
Versatile configurations allow the FatTwin to be optimized for many different environments including Enterprise, Data Center, Cloud Computing, HPC, Financial, Science and Engineering, File and Storage Servers.
- NEW! Support for Dual 2nd generation Intel® Xeon® Scalable processors up to 165W per node
- NEW! Support for Intel® Optane™ DC Persistent Memory 12 DIMM slots; Up to 3TB DDR4-2933MHz memory
- Low-Profile PCI-E 3.0 x16 slot
- SAS3/SATA3/NVMe support
- Redundant 2200W/1200W Titanium (96%) Power Supplies
