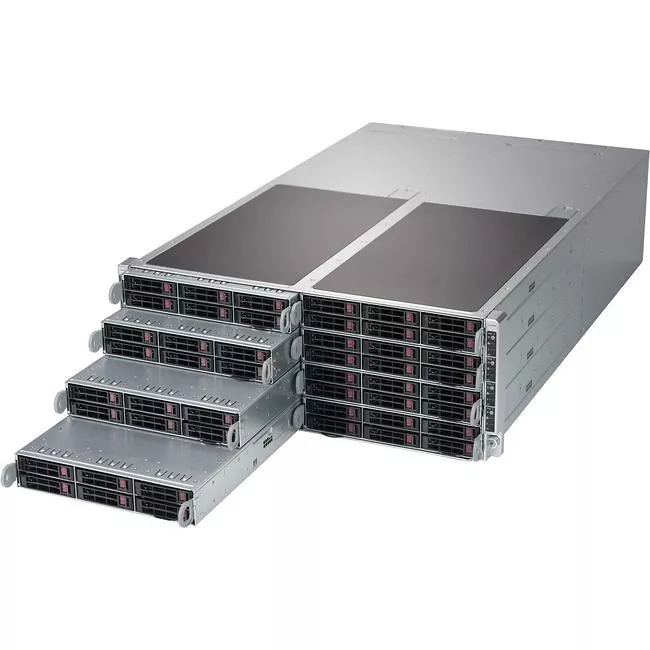

Supermicro SYS-F619P2-RC0 4U 8x Node Server
MPN # SYS-F619P2-RC0
Condition: New
Product highlights:
  • Number of Nodes: 8
  • Processor Supported (Per Node): 2x Intel Xeon Scalable Family
  • Drive Bays (Per node): 6x 2.5" Hot-Swap
  • Rack Height: 4U
Contact sales for pricing
Need Help?   let's talk about it.

The Supermicro SYS-F619P2-RC0 is based on the Intel Xeon Scalable family processor. It features eight nodes, each with six 2.5" hot-swap drives, a Broadcom 3008 SAS3 controller, and one SIOM networking card.

Processor & Chipset
Number of Nodes
8
Number of Processors Supported (per node)
2
Processor Socket
LGA 3647
Processor Type
Xeon
Processor Supported
  • Bronze 31XX
  • Silver 41XX
  • Gold 51XX
  • Gold 61XX
  • Platinum 81XX
  • Bronze 32XX
  • Silver 42XX
  • Gold 52XX
  • Gold 62XX
  • Platinum 82XX
Number of QPI links
2
Thermal Design Power (TDP)
165 W
Chipset Manufacturer
Intel
Chipset Model
C621
Memory (per node)
Maximum Memory
3 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2933/PC4-23400
Number of Total Memory Slots
12
Controllers (per node)
SAS3
  • Via Broadcom 3008 controller
Network & Communication
SIOM Networking Options
  • 2x 1000BASE-T RJ45 Ports
  • 4x 1000BASE-T RJ45 Ports
  • 2x 10G SFP+ Ports
  • 4x 10G SFP+ Ports
  • 2x 10GBASE-T RJ45 Ports
  • 4x 10GBASE-T RJ45 Ports
  • 2x 25GbE SFP28 & 2x 10GBASE-T RJ45 Ports
  • 4x 25GbE SFP28 Ports
  • 2x 25GbE SFP28 Ports
  • 2x IB FDR QSFP & 2x 1000BASE-T RJ45 Ports
  • 1x IB FDR QSFP & 2x 1000BASE-T RJ45 Ports
  • 1x IB EDR QSFP & 1x 1000BASE-T RJ45 Ports
  • 1x 100G Omni-Path QSFP28 Port
I/O Expansions (per node)
PCI Express
  • 1x PCI-E 3.0 x16 slot (Low-profile)
  • 1x PCI-E 3.0 x16 slot (SIOM)
  • 1x PCI-E 3.0 x4 M.2 slot (2260, 2280, 22110)
Drive Bays (per node)
Hot-swap
  • 6x 2.5" Hot-swap drive bays
Interfaces/Ports (per node)
Total Number of USB Ports
2
Number of USB 3.0 Ports
2 (rear)
Number of SAS Interfaces
6
LAN
  • 1x RJ45 IPMI dedicated LAN Port
Onboard Video
1x VGA Connector
Power Description
Number of Power Supplies
2
Redundant Power Supplies
Yes
Maximum Power Supply Wattage
2200 W
Certification
80 Plus Titanium
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
4U
Height
6.96"
Width
17.63"
Depth
29"
