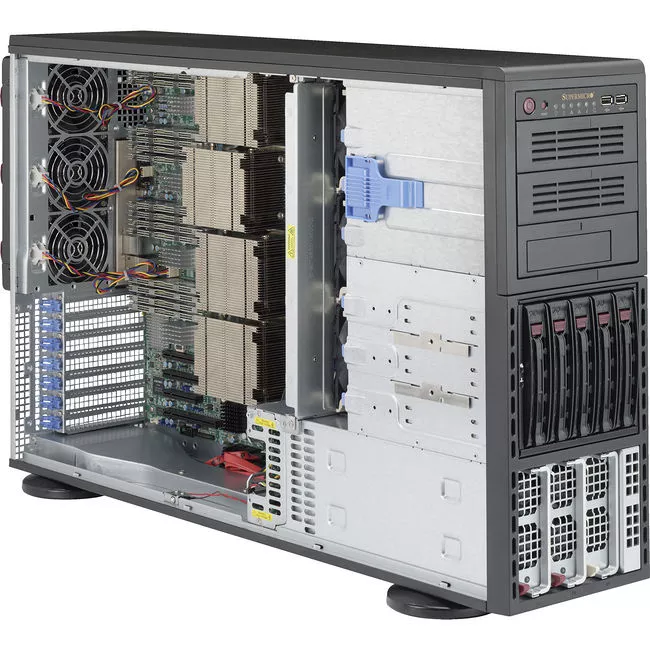

Supermicro SYS-8048B-TR4F 4U Server / Tower

Please log in to add an item to your wishlist. MPN: SYS-8048B-TR4F

Supermicro SYS-8048B-TR4F 4U Server / Tower

Highlights

Overview

Specifications

The Supermicro SYS-8048B-TR4F is based on the Intel Xeon E7-4800 v3/v4 and E7-8800 v3/v4 families. It features five hot-swappable 3.5" drive bays and support for two PCIe 3,0 x16 and two PCIe 3.0 x8 slots.

Specifications

Processor & Chipset

Number of Processors Supported

Processor Socket

LGA 2011

Processor Type

Xeon

Processor Supported

E5-4800 v3
E5-4800 v4
E5-8800 v3
E5-8800 v4

Thermal Design Power (TDP)

Up to 165W

Chipset Manufacturer

Intel

Chipset Model

C602J

Memory

Maximum Memory

2 TB

Memory Technology

DDR4 SDRAM

Memory Standard

DDR4-1866/PC4-14900

Number of Total Memory Slots

Controllers

SATA3

Via C602J chipset
RAID 0, 1

SATA2

Via C602J chipset
RAID 0, 1, 5, 10

Display & Graphics

Graphics Controller Manufacturer

ASPEED

Graphics Controller Model

AST2400

Network & Communication

Ethernet Technology

1000BASE-T

I/O Expansions

PCI Express

2x PCI-E 3.0 x16 slots (Full-height, supports double-width cards)
2x PCI-E 3.0 x8 slots (Full-height)

Drive Bays

Hot-swap

5x 3.5" Hot-swap drive bays

Interfaces/Ports

Total Number of USB Ports

Number of USB 2.0 Ports

Number of SATA3 Interfaces

Number of SATA2 Interfaces

LAN

2x RJ45 1000BASE-T Ethernet LAN Ports
1x RJ45 Dedicated IPMI Port

Onboard Video

1x VGA Connector

Power Description

Number of Power Supplies

Redundant Power Supplies

Yes

Maximum Power Supply Wattage

1400 W

Certification

80 Plus Platinum

Physical Characteristics

Color

Black

Form Factor

Rack-mountable

Rack Height

Height

7.0"

Width

18.2"

Depth

28.4"
